Mean Well XLG Series Adjustable Constant Power LED Drivers (50W & 320W)

Mean Well XLG Series Adjustable LED Drivers — Built for UAE Extremes

The Mean Well XLG Series is a professional-grade IP67 LED driver family designed for outdoor lighting projects across Dubai, Abu Dhabi, and the GCC. The series uses Constant Power Mode design to maximize LED compatibility and minimize inventory complexity. Choose between the compact XLG-50-A (50W, CC, 22~54V) for street lights and small floods, or the high-capacity XLG-320-V-A (312W at 24V, CV) for large flood arrays, stadium masts, and industrial facades. Both models operate from a universal 100~305VAC input at 47~63Hz, fully compatible with UAE DEWA and ADEWA grid standards. The IP67 sealed metal housing protects against dust, sand, and temporary water immersion. Both carry 5-year Mean Well global warranty and ship same-day from Newon's Dubai warehouse.

What Is Constant Power Mode? (And Why It Matters)

Unlike standard constant-current drivers that lock you to a single current value, Constant Power Mode means the driver automatically adjusts its output to maintain rated power across a wide voltage range:

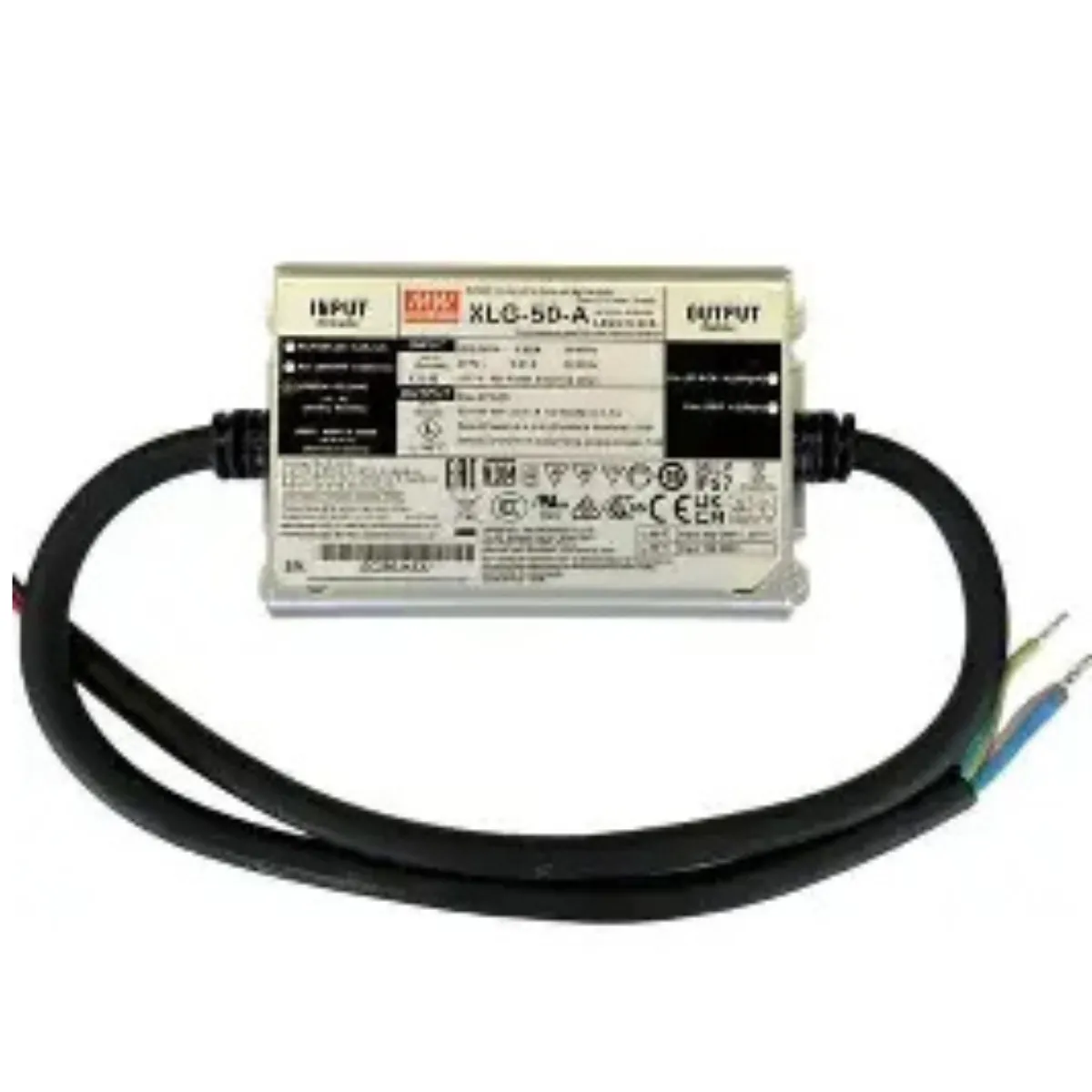

• XLG-50-A: Delivers ~50W across 22~54V by auto-adjusting current from 0.53A to 2.1A. One driver powers multiple LED brands with different forward voltages.

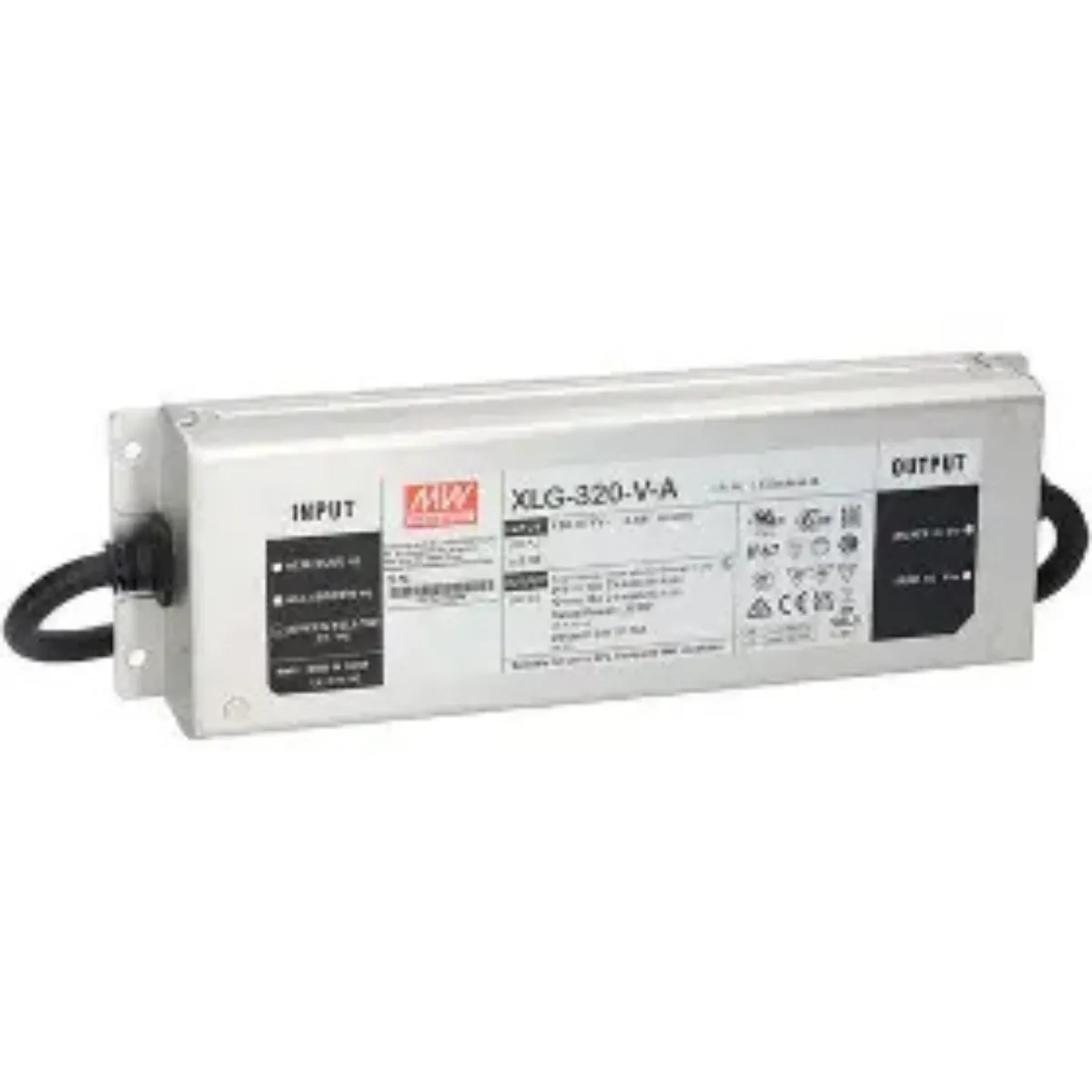

• XLG-320-V-A: Delivers stable 24V at up to 13A (312W). Voltage adjustable to 12V at 18A (216W) via built-in potentiometer for 12V LED systems.

This eliminates the need to stock multiple driver variants for different LED modules — reducing inventory cost and project complexity.

Why IP67 & Wide-Temperature Rating Matters in the UAE

Standard indoor drivers (IP20–IP54) fail within months in UAE outdoor enclosures. Heat buildup, dust infiltration, and humidity destroy capacitors. The XLG series solves this with:

• IP67 fully sealed metal housing: Dust-tight and protected against temporary water immersion (IEC 60529).
• Wide case temperature range: XLG-50-A rated for -40°C to +80°C working (max case +90°C); XLG-320-V-A rated for -40°C to +85°C — providing headroom in UAE summer junction boxes that routinely exceed 70°C ambient.
• Active PFC ≥0.9: Reduces DEWA reactive power charges and grid harmonics.
• Surge protection 4kV L-L / 6kV L-G: Built-in immunity against UAE summer electrical storms.
• Built-in protections: Short circuit, over voltage, over temperature, and over power protection with automatic recovery.

50W vs 315W — Which Driver Do You Need?

Application	Recommended	Calculation
Street lights, road lanterns, perimeter bollards (1–2 units at 20–40W)	XLG-50-A	30W–50W LED engines | 0.53–2.1A adjustable to match module
Small floodlights, wall washers, billboard lighting (40–50W)	XLG-50-A	Compact 105×63×30mm fits tight junction boxes
Large floodlight arrays, stadium masts, high-bay warehouses (200–300W)	XLG-320-V-A	24V/13A = 312W | Parallel LED arrays on single driver
Parking canopy, tunnel lighting, industrial facade (250–300W)	XLG-320-V-A	CV mode covers multiple fixture brands on one bus
12V LED strip systems, signage, marine lighting	XLG-320-V-A	Adjust potentiometer to 12V output, 18A capacity

Never run a driver at 100% continuous load. Always apply a 1.15× safety factor.

Complete Technical Specifications

Specification	XLG-50-A	XLG-320-V-A
Rated Output Power	50W	312W at 24V (315W series max)
Output Mode	Constant Current (CC)	Constant Voltage (CV)
Output Voltage	22~54V DC (CC region)	24V DC (default) or 12V
Open Circuit Voltage (max.)	57V	—
Rated Current (Default)	1A	13A (24V), 18A (12V)
Adjustment Range	0.53~2.1A (current)	24V or 12V (voltage)
Input Voltage	100~305VAC, 47~63Hz
Input Current (typ.)	0.57A/115VAC, 0.29A/230VAC	3A/120VAC, 1.6A/230VAC
Inrush Current	50A (cold start at 230VAC)	45A (max)
Power Factor	≥0.95 at 230VAC	≥0.9 at 230VAC
Efficiency (Typ.)	Up to 90%	Up to 93%
No-Load Power	<0.5W
IP Rating	IP67
Working Temp (Case)	-40°C to +80°C	-40°C to +85°C
Max Case Temp	+90°C	+85°C
Surge Protection	4kV L-L / 6kV L-G
Withstand Voltage	I/P-O/P: 3.75KVAC, I/P-FG: 2.0KVAC, O/P-FG: 1.5KVAC
Isolation Resistance	100MΩ / 500VDC
Vibration	10~500Hz, 5G
Dimensions (L×W×H)	105 × 63 × 30 mm	246 × 77 × 39.5 mm
Weight	0.41 kg	1.45 kg
Certifications	UL8750(HL), CSA, ENEC, CE, EAC, KC	UL8750(HL), CSA, ENEC, CE, EAC, KC, IS15885
EMC	BS EN/EN55015, BS EN/EN61000-3-2, BS EN/EN61000-3-3, BS EN/EN61547
Warranty	5 years (Mean Well)
Rated Lifespan	>50,000 hours (Tcase ≤75°C)
MTBF	3,931.6K hrs (Telcordia)	1,476.4K hrs (Telcordia)
SKU	MW-XLG-50-A	MW-XLG-320-V-A
Price (AED incl. VAT)	AED 99	AED 248

Potentiometer Adjustment: How It Works

Unlike DALI or 0-10V drivers that need external control gear, the XLG-A series has a small potentiometer dial on the driver housing, accessed by removing a rubber sealing plug:

1. Power off the driver and allow capacitors to discharge.
2. Remove the rubber sealing plug to access the adjustment screw.
3. XLG-50-A: Use a small flat-head screwdriver to adjust output current. Clockwise = increase current (up to 2.1A). Counter-clockwise = decrease (down to 0.53A).
4. XLG-320-V-A: Turn the potentiometer to select output voltage. Default = 24V. Clockwise to the end = 12V output.
5. Power on and measure with a multimeter. Repeat until target value is reached.
6. Replace the rubber sealing plug firmly to maintain IP67 rating.

⚠️ Critical: Never leave the potentiometer access open in outdoor installations. The rubber plug is part of the IP67 seal. Losing it voids dust/water protection and the warranty. Never operate the driver without the plug fully seated.

Installation Overview

1. Calculate load: Sum all LED wattage. Multiply by 1.15. Select 50W or 315W.
2. Mount: Install in ventilated outdoor enclosure using built-in chassis mount ears. Maintain 50mm clearance for airflow.
3. AC input: Wire L, N, PE to terminal block. Use 1.5mm² cable (<10m) or 2.5mm² (>10m).
4. DC output: Wire V+ and V- to LEDs. Use terminal block for parallel fixtures.
5. Adjust: Power on. Use multimeter to verify output. Adjust potentiometer if needed.
6. Seal: Confirm rubber plug is fully seated. Close junction box.

⚠️ Licensed electrician required for AC wiring per DEWA and UAE Ministry of Energy regulations.

10-Year TCO: Mean Well vs Generic

Cost Factor	Mean Well XLG (90–93% eff.)	Generic Driver (86% eff.)
Purchase price (315W)	AED 248	AED 130–160
Annual energy waste (12 hrs/day)	≈ AED 45/year	≈ AED 128/year
Replacements in 10 years (UAE heat)	1×	3×
10-year total cost	AED 698	AED 1,616
Total Savings	AED 918+ per driver — Mean Well pays for itself in 4 years

Why Buy from Newon?

• 100% genuine Mean Well — serial numbers verifiable at meanwell.com
• Same-day dispatch — Dubai stock, not 45-day China shipping
• Technical support — load calculations, wiring diagrams, potentiometer guidance via WhatsApp
• Bulk pricing — MEP contractor rates for projects
