LED Drivers

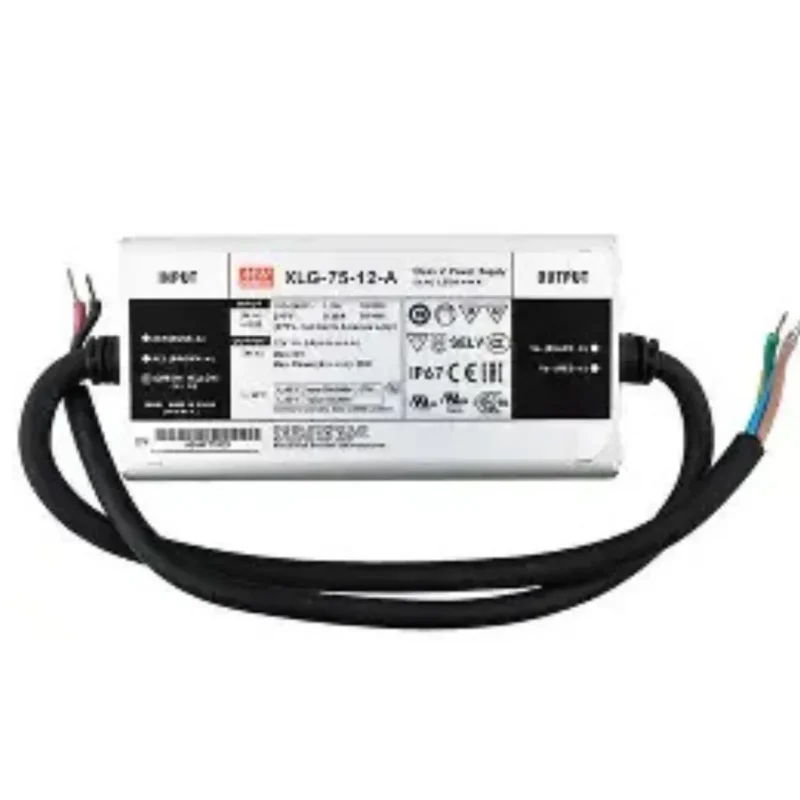

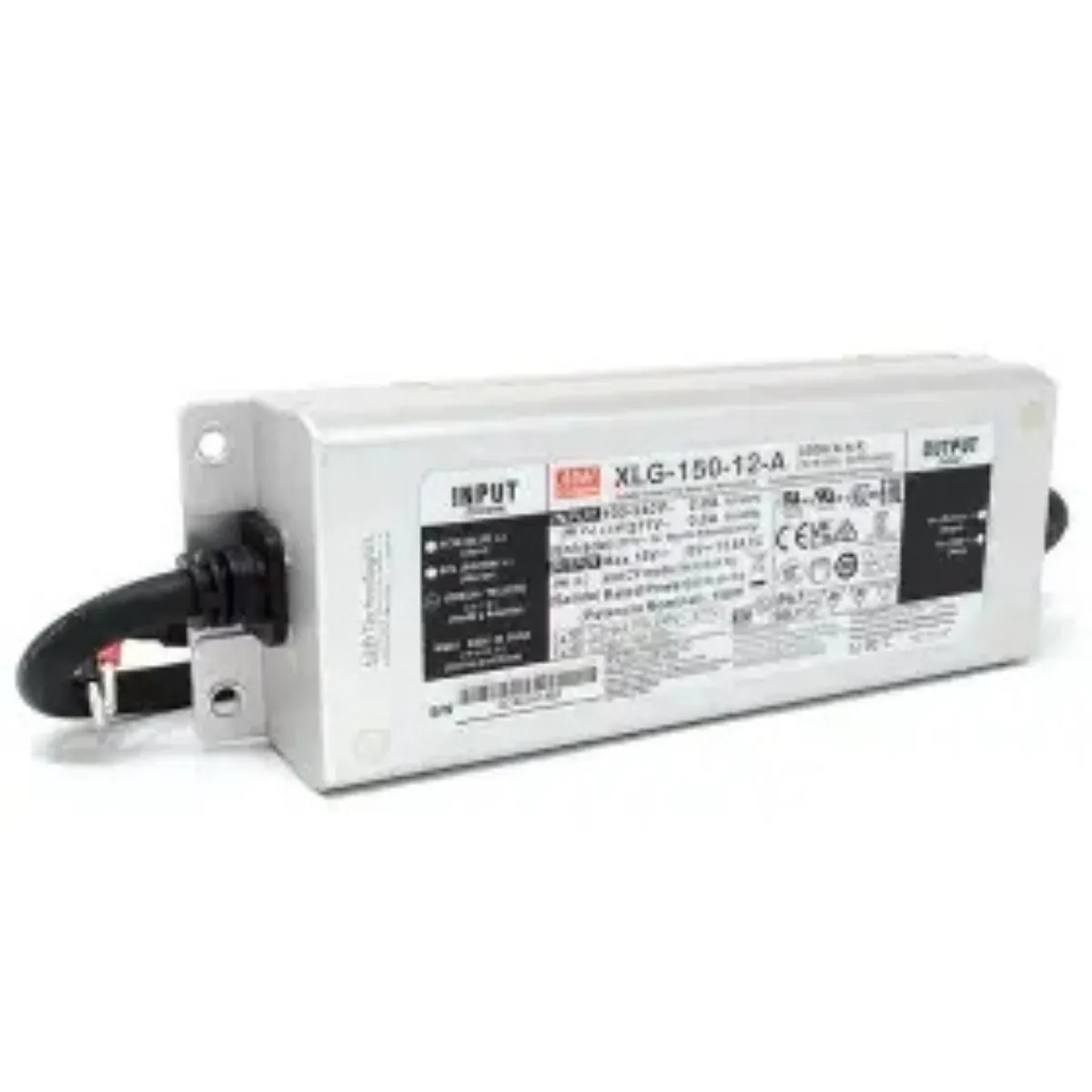

Mean Well XLG Series 12V Adjustable Constant Power LED Drivers (75W – 200W)
Price range: AED 109 through AED 152
The Mean Well XLG 12V LED driver UAE series delivers professional IP67-rated constant power with a stable 12V DC output. Select 60W, 96W, 150W, or 192W below for your 12V LED strips and architectural modules.
- IP67 fully sealed — survives UAE summers, coastal humidity, and desert dust
- Wide case temperature — -40°C to +90°C working range (Max Case Temp +90°C)
- Current adjustable — fine-tune output Amps via built-in potentiometer
- Active PFC ≥0.95 — reduces DEWA reactive power charges at 230VAC
- Surge protection 4kV/6kV — handles UAE summer electrical storms
- 100% genuine Mean Well — serial numbers verifiable, 5-year warranty
Same-day dispatch from Dubai. Expert load calculations via our technical support team. Browse the full Mean Well collection.
Special Discount!
Hurry and get discounts up to 20% Read more
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
Description
Mean Well XLG 12V Series Adjustable LED Drivers — Engineered for UAE Extremes
The Mean Well XLG 12V LED driver UAE series is a professional-grade, IP67-sealed power solution designed for 12V DC outdoor lighting projects across Dubai, Abu Dhabi, and the GCC. Operating in Constant Power Mode (CV+CC), these drivers deliver a stable 12V Constant Voltage output with a Constant Current limiting region to protect sensitive LED modules. Choose between 60W, 96W, 150W, and 192W capacities to power 12V LED strip arrays, architectural wall washers, and facade lighting.
All models operate from a universal 100~305VAC input (and 142~431VDC), fully compatible with DEWA and ADDC grid standards. The IP67 metal housing protects against dust and temporary water immersion, while the 5-year Mean Well global warranty ensures long-term project reliability.
What Is Constant Power Mode (CV+CC)? (And Why It Matters)
The XLG series utilizes Constant Power Mode topology. This means the driver maintains constant power across a wide output voltage and current range, ensuring stable operation even if the LED forward voltage shifts due to extreme UAE temperature changes. Furthermore, it features a Constant Current (CC) limiting region (8.4~12V). If an overload or short circuit occurs, the driver seamlessly transitions into this CC region to limit the current, preventing the driver from shutting down and protecting the LEDs from thermal runaway.
Why IP67 & Wide-Temperature Rating Matters in the UAE
Standard indoor drivers (IP20) fail rapidly in UAE outdoor junction boxes due to heat buildup and humidity. The XLG 12V series solves this with:
- IP67 fully sealed metal housing: Dust-tight and protected against temporary water immersion (IEC 60529).
- Extreme case temperature range: Rated for -40°C to +90°C continuous working. The Max Case Temperature (Tcase) is also +90°C, providing maximum thermal headroom in UAE summer enclosures that routinely exceed 65°C ambient.
- Active PFC ≥0.95 (at 230VAC): Reduces grid harmonics and reactive power charges.
- Surge protection 4kV L-L / 6kV L-G: Built-in immunity against summer electrical storms.
60W vs 96W vs 150W vs 192W — Which Driver Do You Need?
| Application | Recommended | Calculation (Max Continuous Load) |
|---|---|---|
| Small facade washers, 3-4m LED strip runs (14.4W/m) | XLG-75-12-A | ~3.6 meters of 14.4W/m strip (60W ÷ 1.15 safety factor = 52W max) |
| Medium architectural lighting, perimeter bollards | XLG-100-12-A | ~5.7 meters of 14.4W/m strip (96W ÷ 1.15 = 83W max) |
| Large flood arrays, long linear runs, parking canopies | XLG-150-12-A | ~9.0 meters of 14.4W/m strip (150W ÷ 1.15 = 130W max) |
| High-density 12V arrays, commercial signage | XLG-200-12-A | ~11.5 meters of 14.4W/m strip (192W ÷ 1.15 = 166W max) |
Note: The "75", "100", and "200" in the model names refer to the series maximum at higher voltages. The 12V variants are current-limited to 60W, 96W, and 192W respectively. Never run a driver at 100% continuous load in UAE summer heat. Always apply a 1.15× safety factor.
Complete Technical Specifications
| Specification | XLG-75-12-A | XLG-100-12-A | XLG-150-12-A | XLG-200-12-A |
|---|---|---|---|---|
| Rated Output Power | 60W | 96W | 150W | 192W |
| Output Voltage | 12V DC (CV+CC Mode, CC Region: 8.4~12V) | |||
| Rated Current | 5A | 8A | 12.5A | 16A |
| Current Adj. Range | 2.5~5A | 4~8A | 6.3~12.5A | 8~16A |
| Input Voltage | 100~305VAC, 142~431VDC, 47~63Hz | |||
| Power Factor | ≥0.97/115VAC, ≥0.95/230VAC, ≥0.92/277VAC | |||
| Efficiency (Typ.) | Up to 89% | Up to 92.5% | Up to 91.5% | Up to 92% |
| IP Rating | IP67 | |||
| Working Temp (Case) | -40°C to +90°C | |||
| Surge Protection | 4kV L-L / 6kV L-G | |||
| Dimensions (L×W×H) | 140 × 63 × 32 mm | 140 × 63 × 32 mm | 180 × 63 × 35.5 mm | 199 × 63 × 35.5 mm |
| Weight | 0.58 kg | 0.58 kg | 0.88 kg | 0.85 kg |
| Warranty | 5 years (Mean Well) | |||
Potentiometer Adjustment: How It Works
The XLG 12V series features a small potentiometer dial on the housing to fine-tune the output current (Amps), allowing you to match the exact current requirements of your LED modules:
- Power off the driver and allow capacitors to discharge.
- Remove the rubber sealing plug on the output end.
- Use a small flat-head screwdriver to adjust the dial. Measure the output current with a multimeter while adjusting.
- Replace the rubber sealing plug firmly to maintain the IP67 rating.
⚠️ Critical: Never leave the potentiometer access open in outdoor installations. Losing the rubber plug voids dust/water protection and the warranty.
Installation Overview
- Calculate load: Sum all 12V LED wattage. Multiply by 1.15. Select 60W, 96W, 150W, or 192W.
- Mount: Install in a ventilated outdoor enclosure using built-in chassis ears. Maintain 50mm clearance.
- AC input: Wire L, N, PE to terminal block. Use 1.5mm² cable.
- DC output: Wire V+ and V- to LEDs.
- Seal: Confirm rubber plug is fully seated. Close junction box.
⚠️ Licensed electrician required for AC wiring per DEWA and UAE Ministry of Energy regulations.
10-Year TCO: Mean Well vs Generic 12V Driver
| Cost Factor (150W Load) | Mean Well XLG (91.5% eff.) | Generic Driver (84% eff.) |
|---|---|---|
| Purchase price | AED 128 | AED 70 |
| Annual energy waste (12 hrs/day) | ≈ AED 32/year | ≈ AED 85/year |
| Replacements in 10 years (UAE heat) | 0 (1 unit lasts) | 2 (3 units total) |
| 10-year total cost | AED 448 | AED 920 |
| Total Savings | AED 472+ per driver | |
Why Buy from Newon?
- 100% genuine Mean Well — serial numbers verifiable at meanwell.com
- Same-day dispatch — Dubai stock, not 45-day shipping
- Technical support — load calculations and wiring guidance via our contact page
Related Mean Well Products
- LPV Series 24V — Outdoor IP67, non-adjustable CV
- PWM Series 24V IP67 — 0-10V/PWM dimming
- ELG Series 24V DALI — Smart digital dimming
- XLG Series 24V Adjustable — For 24V strip systems
Browse our full Mean Well Brand Collection or the main LED Drivers Category.
Order today with fast UAE delivery across Dubai, Abu Dhabi, Sharjah, and all Emirates.
📲 Need MEP specifications? Contact our technical team.
🌐 Also available on Amazon UAE.
