LED Drivers

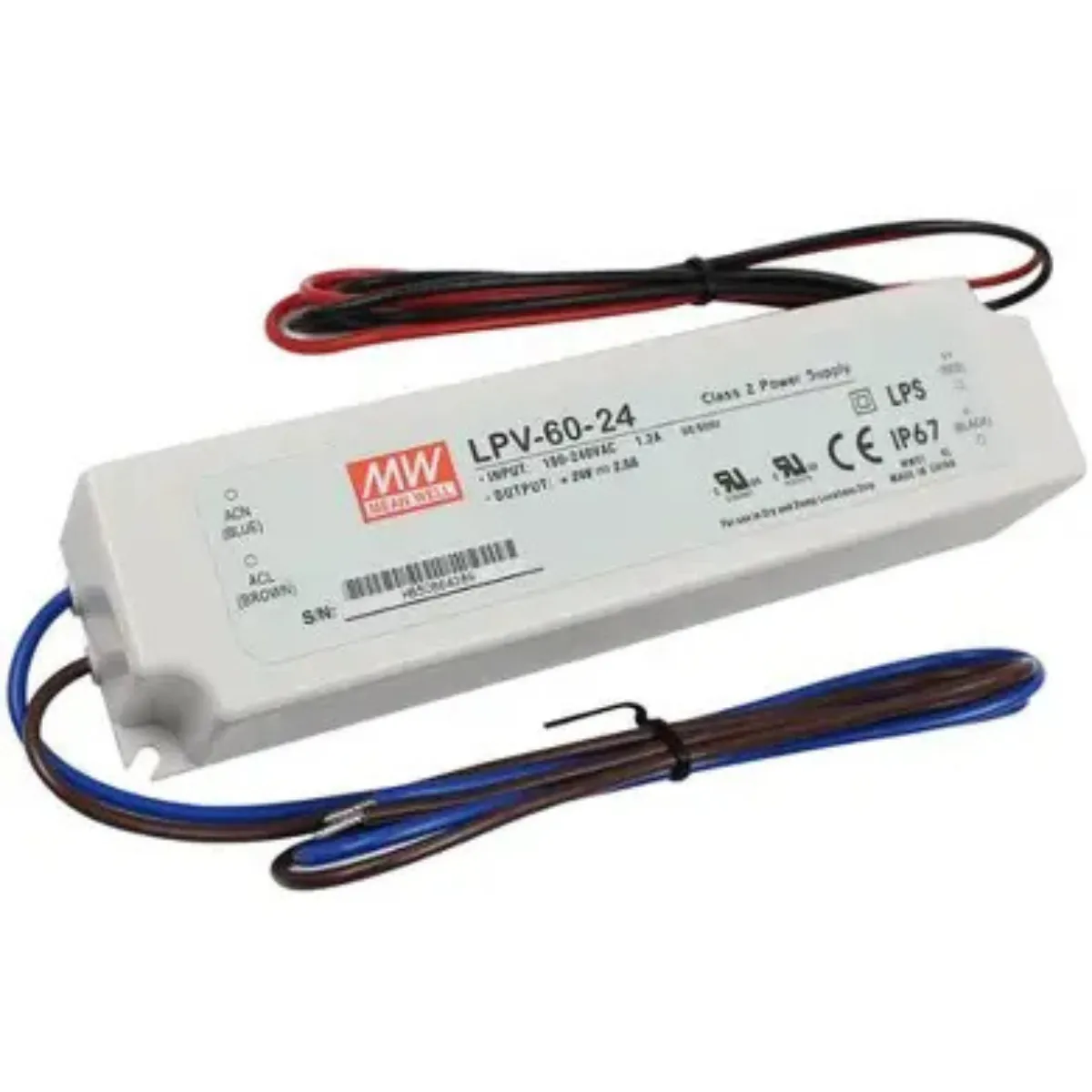

Mean Well LPV Series 24V IP67 LED Drivers (20W – 150W)
Price range: AED 58 through AED 128
The Mean Well LPV 24V LED driver series delivers reliable, IP67-rated Constant Voltage (CV) power for standard 24V LED lighting. Select 20W, 35W, 60W, 100W, or 150W below.
- Constant Voltage (CV): Stable 24V DC output for LED strips and modules.
- Non-Dimmable: Strict ON/OFF operation — use PWM series for dimming.
- IP67 fully potted: Sealed against dust and water for UAE outdoor use.
- Wide input range: 90~264VAC (20W–100W); LPV-150 supports high-voltage 180~305VAC.
- Compact per-model sizing: From 118×35×26mm (20W) to 191×63×37.5mm (150W).
- 100% genuine Mean Well: 2-year manufacturer warranty, serials verifiable.
Same-day dispatch from Dubai. Load calculations via technical support. Browse the Mean Well collection.
Special Discount!
Hurry and get discounts up to 20% Read more
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
Description
Mean Well LPV 24V LED Driver Series — Reliable IP67 Power for Standard Lighting
The Mean Well LPV 24V LED driver is the industry standard for entry-level, IP67-rated Constant Voltage (CV) power supplies. Designed for straightforward ON/OFF operation, the LPV series provides stable 24V DC output without the cost or complexity of dimmable drivers.
Available in 20W, 35W, 60W, 100W, and 150W, this fully potted series is the proven choice for cabinet lighting, basic coves, signage, and outdoor strip installations across Dubai, Abu Dhabi, and the GCC.
LPV-150: High-Voltage Input for Commercial Grids
Standard LPV models (20W–100W) operate on 90~264VAC. The LPV-150-24 is engineered for 180~305VAC input only, making it the correct choice for 277V commercial installations and sites with high voltage fluctuations.
20W vs 35W vs 60W vs 100W vs 150W — Which Driver Do You Need?
| Application | Recommended | Max Continuous Load (1.15× factor) |
|---|---|---|
| Small display cabinets, shelf lighting (10W/m strip) | LPV-20-24 | ~1.7 m (17W max) |
| Under-cabinet kitchen lighting (14.4W/m strip) | LPV-35-24 | ~2.1 m (31W max) |
| Standard bedroom coves, signage (14.4W/m strip) | LPV-60-24 | ~3.6 m (52W max) |
| Long living room perimeters (14.4W/m strip) | LPV-100-24 | ~6.0 m (87W max) |
| Commercial facades, 277V grids (19.2W/m strip) | LPV-150-24 | ~6.8 m (131W max) |
Never run a driver at 100% continuous load in UAE heat. Always apply the 1.15× safety factor.
Complete Technical Specifications (Datasheet-Verified)
| Specification | LPV-20-24 | LPV-35-24 | LPV-60-24 | LPV-100-24 | LPV-150-24 |
|---|---|---|---|---|---|
| Rated Power | 20.2W | 36W | 60W | 100.8W | 151.2W |
| Output Voltage / Current | 24V / 0.84A | 24V / 1.5A | 24V / 2.5A | 24V / 4.2A | 24V / 6.3A |
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 180~305VAC |
| Efficiency (Typ.) | 83% | 85% | 86% | 85% | 89% |
| Dimming | Non-dimmable (ON/OFF only) | ||||
| IP Rating | IP67 (fully potted plastic case) | ||||
| Working Temp (Case) | -30°C to +70°C | -30°C to +65°C | -30°C to +70°C | -25°C to +70°C | -25°C to +65°C |
| Dimensions (L×W×H) | 118×35×26mm | 148×40×30mm | 162×42×30mm | 190×52×37mm | 191×63×37.5mm |
| Weight | 0.20 kg | 0.31 kg | 0.40 kg | 0.63 kg | 0.74 kg |
| Warranty | 2 years (Mean Well) | ||||
Installation Overview
- Calculate load: Sum strip wattage × 1.15. Select model.
- Check fit: Verify enclosure dimensions against the exact L×W×H above.
- Mount: Chassis mount horizontally or vertically with ventilation clearance.
- AC input: Wire L, N to the input cables (Class II, no FG).
- DC output: Wire V+ (Red) and V- (Black) to the LED strip.
⚠️ Licensed electrician required for AC wiring per DEWA / UAE regulations.
Why Buy from Newon?
- 100% genuine Mean Well — serial numbers verifiable at meanwell.com
- Same-day dispatch — Dubai stock
- Technical support — load calculations via our contact page
Related Mean Well Products

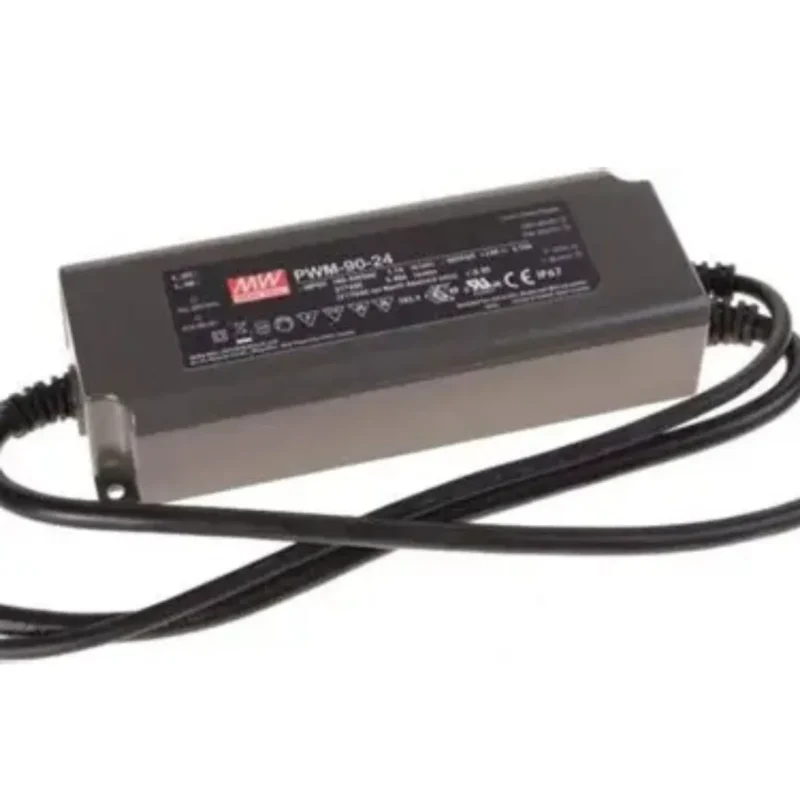

- PWM Series 24V — IP67, 3-in-1 dimmable (upgrade for dimming)
- LRS Series 24V — IP20 indoor, non-dimmable (budget indoor option)

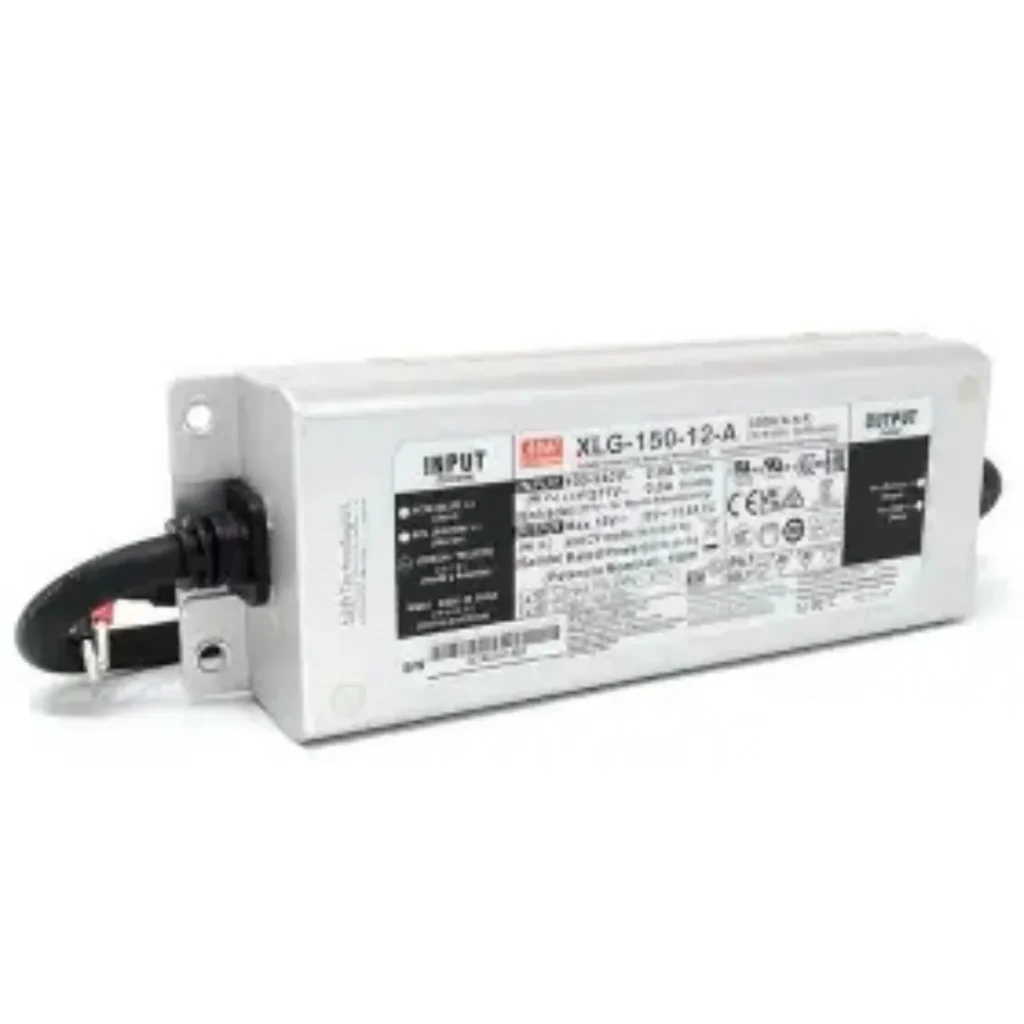

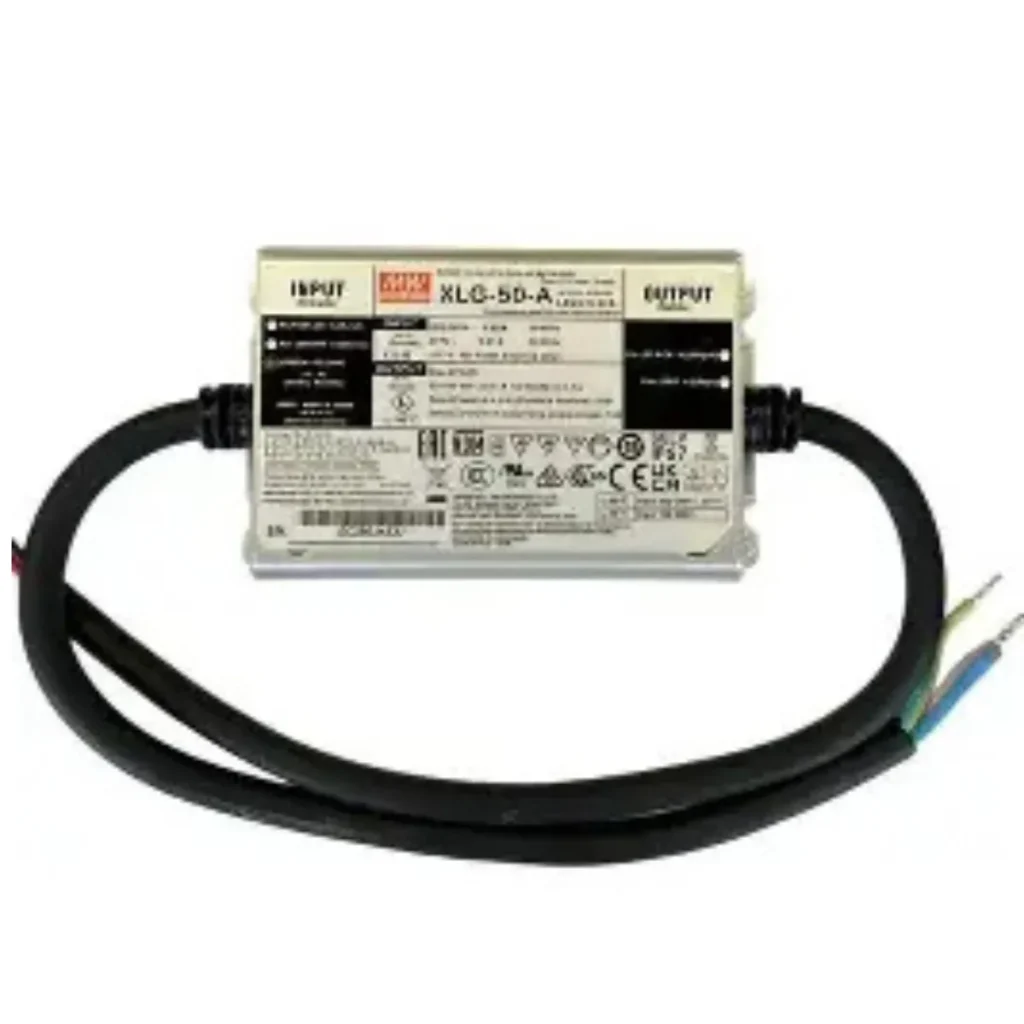

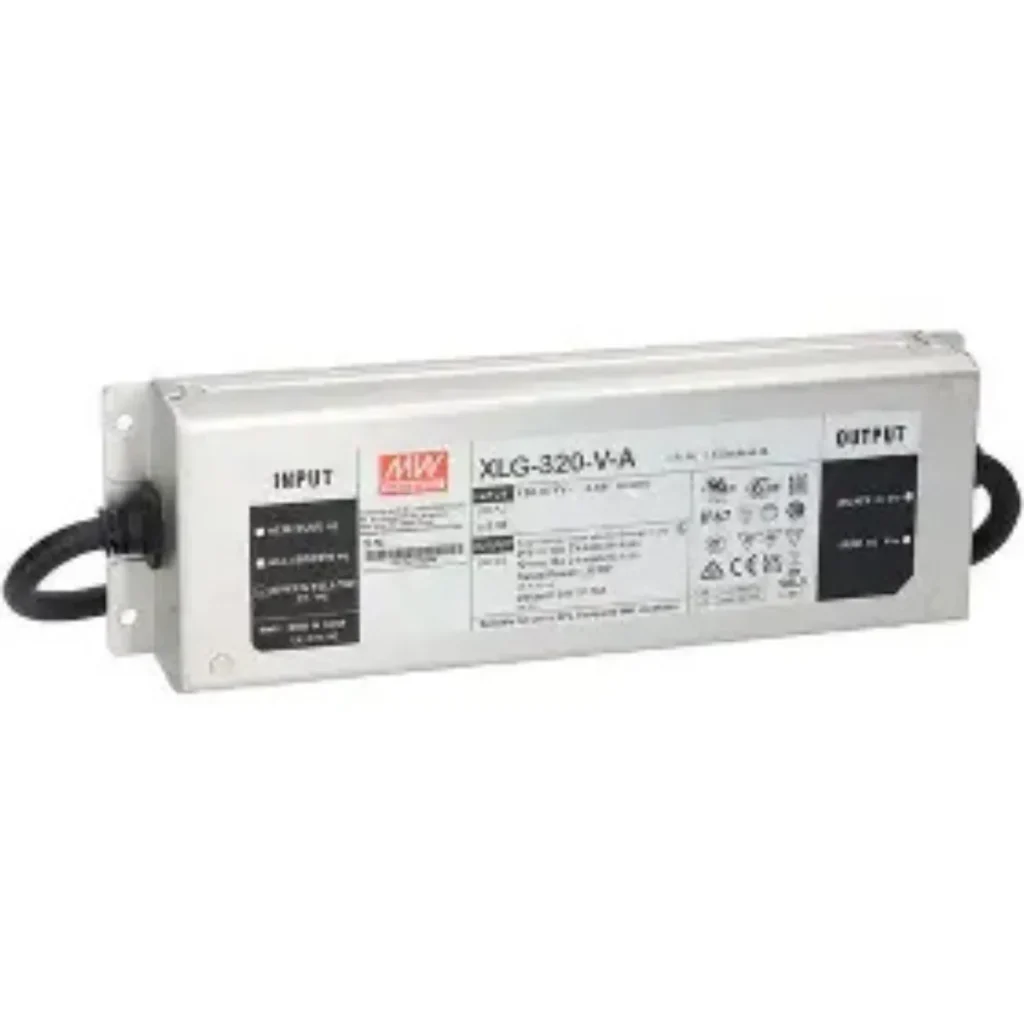

- XLG Series — Constant Power for high-voltage architectural fixtures
Browse the Mean Well Brand Collection or LED Drivers Category.
Order today with fast UAE delivery. 📲 Contact our technical team. 🌐 Amazon UAE.
Customer Reviews
Related Products

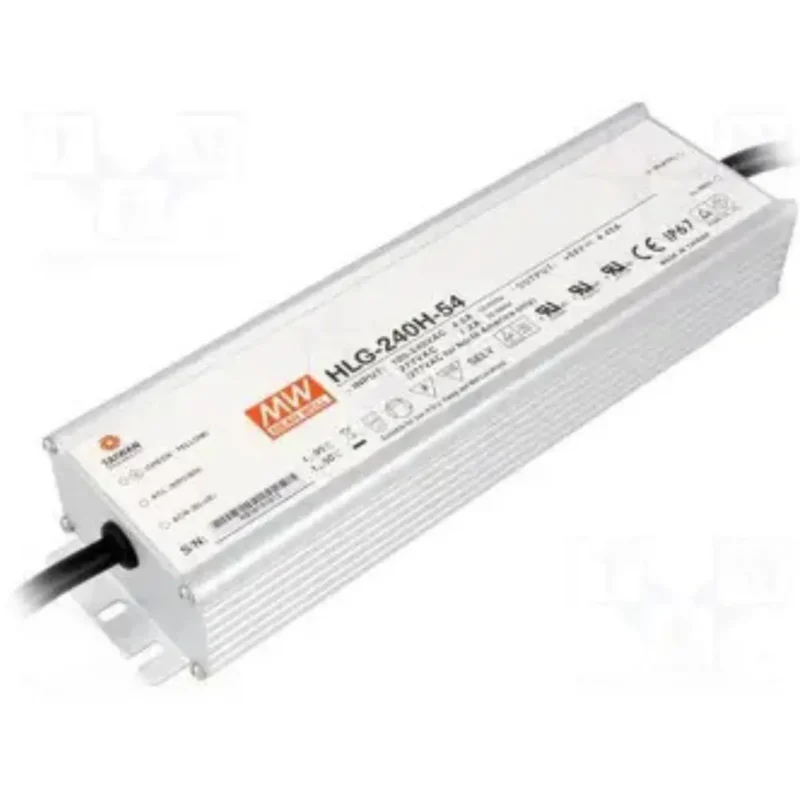

Mean Well HLG Series 54V & 48V LED Drivers (100W – 480W)
