Mean Well XLG Series IP67 Constant Current LED Drivers (75W – 320W)

Mean Well XLG Series — IP67 Constant Current LED Drivers for Demanding Installations

The Mean Well XLG Series is a premium lineup of IP67-rated Constant Current (CC) LED drivers designed for professional outdoor, architectural, and industrial lighting installations. Operating on a universal 100~305VAC input, this series provides stable power delivery across a wide output voltage range in Constant Power Mode. Available in 75W, 100W, 150W, 200W, 240W, and 320W capacities, the XLG series features DALI-2 digital dimming (DA2 models) for seamless integration into smart building management systems.

Constant Power Mode Explained

The XLG series operates in Constant Power Mode, delivering a constant current (CC) output across a wide voltage range. This means the driver automatically adjusts its output voltage to match the LED load while maintaining the programmed current, ensuring optimal performance regardless of LED forward voltage variations.

Model Comparison — Which Driver Do You Need?

Model	Rated Power	Output Current Range	Output Voltage Range	Efficiency	Dimensions (L×W×H)	Weight	Working Temp
XLG-75-H-DA2	75W	1300-2100mA	27-56V	~90%	140×63×32mm	0.58 kg	-40°C to +90°C
XLG-100-H-DA2	100W	1750-2780mA	27-56V	~90%	140×63×32mm	0.58 kg	-40°C to +90°C
XLG-150-H-DA2	150W	2680-4170mA	27-56V	~91%	180×63×35.5mm	0.80 kg	-40°C to +90°C

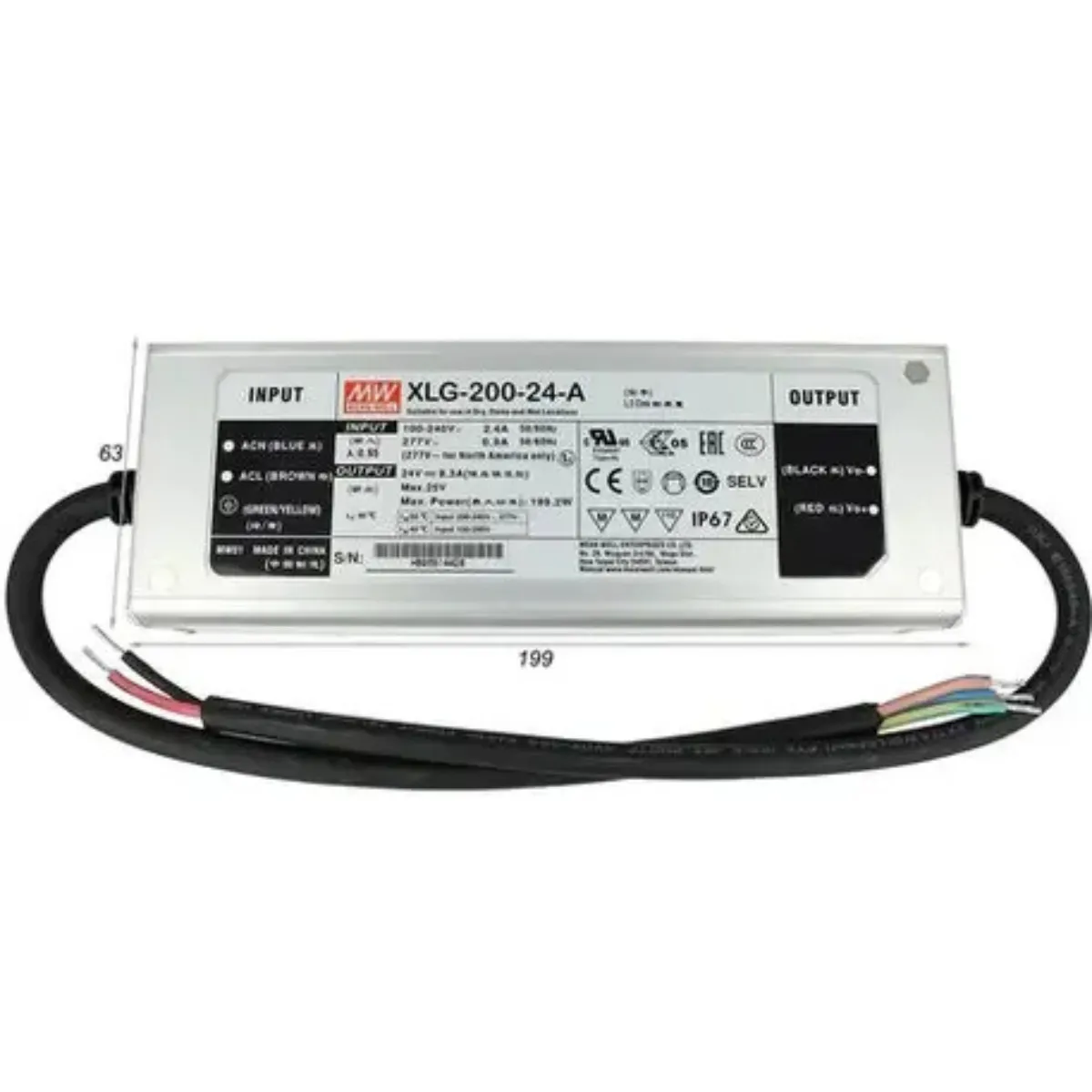

XLG-200-H-DA2	200W	3500-5550mA	27-56V	~92%	199×63×35.5mm	0.90 kg	-40°C to +90°C
XLG-240-H-DA2	240W	4280-6660mA	27-56V	~93%	219×63×35.5mm	1.00 kg	-40°C to +90°C
XLG-320-H-DA2	312W max	5570-7420mA	30-56V	~92.5%	246×77×39.5mm	1.45 kg	-20°C to +85°C
XLG-75-H-AB	75W	650-2100mA (adjustable)	27-56V	~90%	140×63×32mm	0.58 kg	-40°C to +90°C

Sources: Mean Well XLG Series Official Datasheets (XLG-75, XLG-100, XLG-150, XLG-200, XLG-240, XLG-320)

DALI-2 Digital Dimming (DA2 Models)

The XLG-DA2 models feature DALI-2 digital dimming — the global standard for smart lighting control. DALI-2 enables:

• Precise digital addressing — control individual fixtures or groups
• Seamless integration — into building management systems
• Two-way communication — feedback on driver status and performance
• Interoperability — works with any DALI-2 certified controller
• Minimum dimming level: 8%

3-in-1 Dimming (AB Model)

The XLG-75-H-AB features 3-in-1 dimming via a built-in potentiometer, supporting:

• 0-10V — industry-standard analog dimming
• PWM — pulse width modulation dimming
• Resistance — simple resistive dimming (10V or 100kΩ)

The potentiometer allows for manual output current adjustment from 650mA to 2100mA, providing ultimate flexibility for standalone installations.

Environmental Resilience — Built for the UAE

• IP67 rating: Fully potted, dust-tight, and protected against temporary immersion — ideal for UAE's desert dust and occasional rain.
• Wide temperature range: -40°C to +90°C case temperature (75W-240W models) ensures reliable operation in Dubai's extreme summer heat. The 320W model operates from -20°C to +85°C.
• 100~305VAC input: Universal AC input for global compatibility without manual voltage selection.
• Surge protection: 6KV/4KV (10KV/6KV optional on non-DALI types) for lightning-prone areas.

Technical Specifications

Specification	XLG-75-H-DA2	XLG-100-H-DA2	XLG-150-H-DA2	XLG-200-H-DA2	XLG-240-H-DA2	XLG-320-H-DA2
Output Power (Max)	75W	100W	150W	200W	240W	312W
Output Current Range	1300-2100mA	1750-2780mA	2680-4170mA	3500-5550mA	4280-6660mA	5570-7420mA
Output Voltage	27-56V	27-56V	27-56V	27-56V	27-56V	30-56V
Input Voltage	100~305VAC (142~431VDC)
Efficiency (Typ.)	~90%	~90%	~91%	~92%	~93%	~92.5%
Dimming	DALI-2	DALI-2	DALI-2	DALI-2	DALI-2	DALI-2
IP Rating	IP67
Working Temp (Case)	-40°C to +90°C	-40°C to +90°C	-40°C to +90°C	-40°C to +90°C	-40°C to +90°C	-20°C to +85°C
Dimensions	140×63×32mm	140×63×32mm	180×63×35.5mm	199×63×35.5mm	219×63×35.5mm	246×77×39.5mm
Weight	0.58kg	0.58kg	0.80kg	0.90kg	1.00kg	1.45kg
Warranty	5 years

Installation Overview

1. Calculate load: Determine LED fixture's required current and voltage. Select the XLG model with appropriate output current range.
2. Check fit: Verify enclosure dimensions against the exact L×W×H above.
3. Mount: Chassis mount in a well-ventilated location (IP67 permits outdoor installation).
4. AC input: Connect to 100~305VAC supply (230VAC nominal).
5. DC output: Connect V+ and V- to the LED load.

⚠️ Licensed electrician required for AC wiring per DEWA / UAE regulations.

Why Buy from Newon?

• 100% genuine Mean Well — serial numbers verifiable at meanwell.com
• Same-day dispatch — Dubai stock
• Technical support — load calculations via our contact page
• 5-year Mean Well warranty — industry-leading reliability
