Mean Well HLG Series 54V & 48V LED Drivers (100W – 480W)

Price range: AED 224 through AED 615

SKU: MW HLG 54V & 48V LED Drivers (100W - 480W)

The Mean Well HLG Series delivers professional-grade Constant Voltage + Constant Current (CV+CC) power for demanding architectural, commercial, and industrial lighting installations. Available in 100W, 240W, 320W (54V) and 480W (48V) capacities.

CV+CC Output: Dual-mode operation for flexible LED load compatibility.
100W/240W/320W (54V): Fixed output, non-dimmable, 90~305VAC input, IP67.
480W (48V): Adjustable output via built-in potentiometer (Analog/Potentiometer dimming), IP65.
Wide temperature range: -40°C to +90°C case operation — built for the UAE climate.
7-year Mean Well warranty: Industry-leading reliability.

Same-day dispatch from Dubai. Technical support via Newon contact page.

Special Discount!

Hurry and get discounts up to 20% Read more

Watt

Clear

Send Inquiry

Live Chat

Add to compare

Add to wishlist

Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Description

Mean Well HLG Series — Professional CV+CC LED Drivers for Demanding Installations

The Mean Well HLG Series is the industry benchmark for high-reliability LED drivers. Engineered for architectural, commercial, and industrial lighting, this series delivers Constant Voltage + Constant Current (CV+CC) output with exceptional thermal performance and rugged IP67/IP65 construction. Available in 100W, 240W, 320W (54V DC) and 480W (48V DC) configurations. The HLG-480H-48A features adjustable output via built-in potentiometer — ideal for fine-tuning LED current.

Model Comparison — Which Driver Do You Need?

Feature	HLG-100H-54	HLG-240H-54	HLG-320H-54	HLG-480H-48A
Rated Power	95.58W	240.3W	321.3W	480W
Output Voltage	54V DC	54V DC	54V DC	48V DC
Output Current	1.77A	4.45A	5.95A	10.00A
Input Voltage	90~305VAC	90~305VAC	90~305VAC	90~305VAC
Efficiency (Typ.)	93%	93.5%	Up to 95%	94%
Output Type	Fixed	Fixed	Fixed	Adjustable
Dimming	No Dimming	No Dimming	No Dimming	Analog / Potentiometer
IP Rating	IP67	IP67	IP67	IP65
Dimensions (L×W×H)	220×68×38.8mm	244×68×39mm	252×90×43.8mm	262×125×43.8mm
Weight	1.12 kg	1.30 kg	1.88 kg	2.89 kg
Working Temp (Case)	-40°C to +90°C	-40°C to +70°C	-40°C to +70°C	-40°C to +70°C
Warranty	7 years (Mean Well)

CV+CC Operation Explained

The HLG series operates in Constant Voltage + Constant Current (CV+CC) mode. This dual-mode design automatically transitions between CV and CC operation based on the LED load:

Constant Current (CC): Maintains a stable output current when the load requires full power.
Constant Voltage (CV): Maintains a stable output voltage when the load draws less than the rated current.

This flexibility makes the HLG series ideal for LED fixtures with variable load characteristics — from high-power architectural facades to variable-length strip installations.

Environmental Resilience — Built for the UAE

IP67/IP65 rating: Fully potted and sealed against dust and water intrusion.
Wide temperature range: -40°C to +90°C case temperature ensures reliable operation in Dubai's extreme summer heat.
90~305VAC input: Universal AC input for global compatibility without manual voltage selection.

HLG-480H-48A — The Adjustable Difference

Unlike the fixed-output 100W, 240W, and 320W models, the HLG-480H-48A features a built-in potentiometer for manual output current adjustment (10.00A max). This allows you to fine-tune the driver to match your specific LED load requirements.

Installation Overview

Calculate load: Sum LED strip/fixture wattage. Select appropriate HLG model with safety margin (1.15× factor).
Check fit: Verify enclosure dimensions against the exact L×W×H above.
Mount: Chassis mount horizontally or vertically with ventilation clearance.
AC input: Wire L, N, and FG (ground) to the input terminals.
DC output: Wire V+ and V- to the LED load.

⚠️ Licensed electrician required for AC wiring per DEWA / UAE regulations.

Why Buy from Newon?

100% genuine Mean Well — serial numbers verifiable at meanwell.com
Same-day dispatch — Dubai stock
Technical support — load calculations via our contact page
7-year Mean Well warranty — industry-leading reliability

Related Products

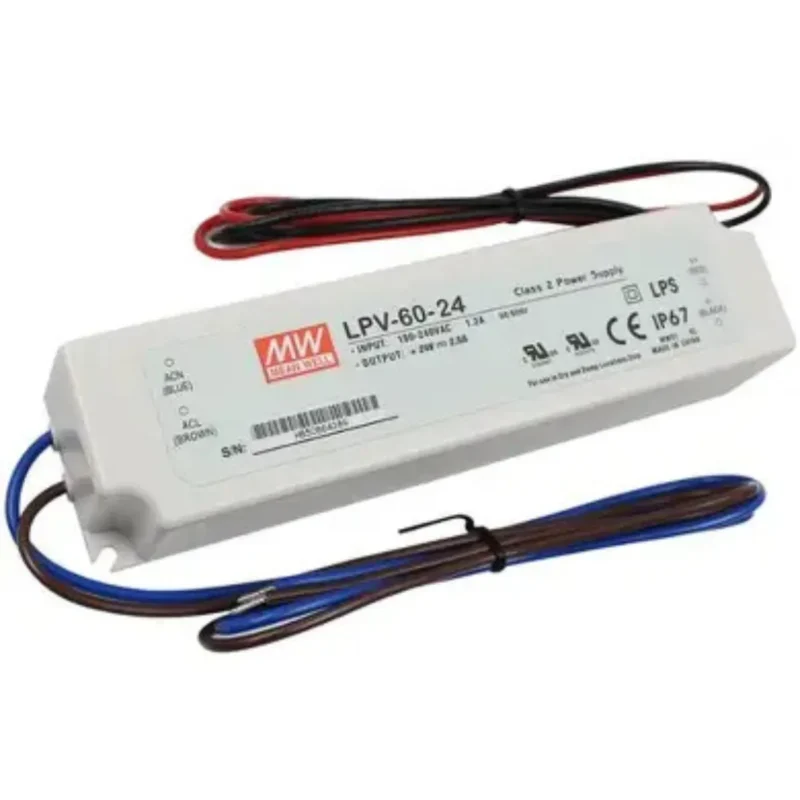

LPV Series — IP67 entry-level, non-dimmable, 20W-150W
PWM Series — IP67, 3-in-1 dimmable
XLG Series — Constant Power for high-voltage architectural fixtures

Order today with fast UAE delivery. 📲 Contact our technical team. 🌐 Amazon UAE.

Frequently Asked Questions

What is the output mode of the Mean Well HLG series?The Mean Well HLG series operates in Constant Voltage + Constant Current (CV+CC) mode. This dual-mode design provides flexibility to power various LED loads by maintaining either a stable voltage or a stable current depending on the circuit requirements.

What is the IP rating for each HLG model?The HLG-100H-54, HLG-240H-54, and HLG-320H-54 are rated IP67. The HLG-480H-48A is rated IP65.

What is the warranty on Mean Well HLG drivers?The Mean Well HLG series carries a 7-year manufacturer warranty — the industry gold standard for LED driver reliability.

What is the difference between fixed and adjustable HLG models?The 100W, 240W, and 320W (54V) models are fixed output with no adjustment or dimming. The 480W (48V) model features adjustable output via a built-in potentiometer with Analog dimming capability.

What input voltage range do the Mean Well HLG drivers support?All HLG models support a universal 90~305VAC input range, ensuring compatibility with standard electrical grids globally.
