Mean Well ERP Series 350W Rainproof LED Drivers (12V, 24V, 48V)
AED 169
The Mean Well ERP Series 350W delivers high-capacity Constant Voltage (CV) power in a rainproof, semi-potted enclosure. Available in 12V, 24V, and 48V outputs, this splash-protected power supply is engineered for large-scale LED signage, pergola lighting, covered balconies, and eave illumination across the UAE.
- Constant Voltage Output: Stable DC power for LED strips, modules, and signage.
- 12V (320.4W / 26.7A): Massive current for 12V LED strip runs and low-voltage signage.
- 24V (350.4W / 14.6A): Industry standard for long-run architectural cove lighting.
- 48V (350.4W / 7.3A): Ideal for specialized high-voltage LED systems.
- Rainproof Design: Semi-potted aluminum case protects against rain splash and dust.
- Wide temperature range: -30°C to +60°C — built for UAE semi-outdoor environments.
- 3-year Mean Well warranty: Proven reliability for commercial projects.
Same-day dispatch from Dubai. Technical support via Newon contact page.
Special Discount!
Hurry and get discounts up to 20% Read more
Shipping and returns
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Product care
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
Description

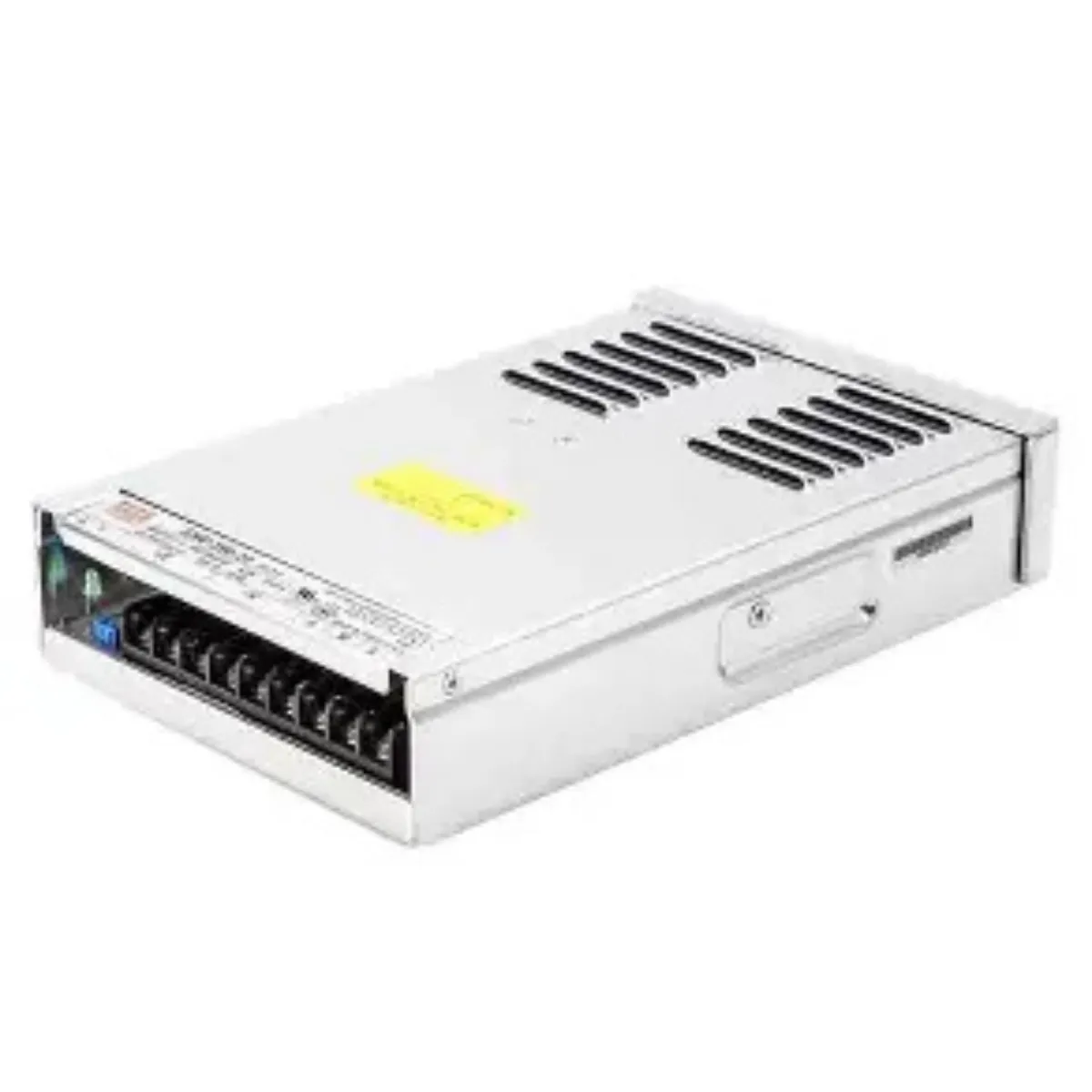

Mean Well ERP Series 350W — High-Capacity Rainproof LED Power Supplies
The Mean Well ERP-350 series delivers massive 350W power output in a specialized rainproof, splash-protected enclosure. Designed specifically for high-demand, semi-outdoor, and covered architectural lighting projects across the UAE, this Constant Voltage (CV) driver is the ideal power source for large LED signage, illuminated pergolas, covered balconies, and recessed eave lighting.Splash-Protected Design for Semi-Outdoor UAE Applications
The ERP series features a semi-potted aluminum case that protects internal electronics against rain splash and dust. Unlike fully potted IP67 drivers, this design offers robust protection for covered outdoor environments while maintaining cost-effectiveness. It should not be submerged or exposed to direct, high-pressure water jets, but easily handles the ambient moisture, wind-blown rain, and high humidity typical of UAE coastal evenings. Cooling: Free air convection (natural cooling) — no active fan required.High-Capacity 350W Output in Three Voltages
To accommodate diverse commercial and architectural lighting designs, the ERP-350 is available in three distinct Constant Voltage outputs:| Model | Output Voltage | Rated Current | Rated Power | Efficiency |
|---|---|---|---|---|
| ERP-350-12 | 12V DC | 26.7A | 320.4W | 87% |
| ERP-350-24 | 24V DC | 14.6A | 350.4W | 89% |
| ERP-350-48 | 48V DC | 7.3A | 350.4W | 90% |
Which Voltage Do You Need?
- 12V (26.7A / 320.4W): Ideal for massive 12V LED strip runs, low-voltage signage, and applications requiring high current.
- 24V (14.6A / 350.4W): The standard for long-run architectural cove lighting and 24V LED modules, minimizing voltage drop over distance.
- 48V (7.3A / 350.4W): Perfect for specialized high-voltage LED systems, telecom, and industrial lighting applications.
Reliable Performance & Thermal Management
Operating on a targeted 180~264VAC input range (also accepts 254~370VDC), the ERP-350 is optimized for standard 230V regional grids. The unit utilizes free air convection for cooling, ensuring a stable case operating temperature range of -30°C to +60°C (with derating). Integrated protections against short circuits, overloads, over-voltage, and over-temperature guarantee the longevity of your valuable LED fixtures.Technical Specifications
| Specification | ERP-350-12 | ERP-350-24 | ERP-350-48 |
|---|---|---|---|
| DC Voltage | 12V | 24V | 48V |
| Rated Current | 26.7A | 14.6A | 7.3A |
| Current Range | 0 ~ 26.7A | 0 ~ 14.6A | 0 ~ 7.3A |
| Rated Power | 320.4W | 350.4W | 350.4W |
| Input Voltage | 180 ~ 264VAC / 254 ~ 370VDC | ||
| Frequency Range | 47 ~ 63Hz | ||
| Efficiency (Typ.) | 87% | 89% | 90% |
| AC Current (Typ.) | 4A / 230VAC | ||
| Inrush Current | 90A / 230VAC | ||
| Leakage Current | <1mA / 240VAC | ||
| Voltage Tolerance | ±1.0% | ±1.0% | ±1.0% |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% |
| Load Regulation | ±0.5% | ±0.5% | ±0.5% |
| Setup, Rise Time | 1500ms, 50ms/230VAC | 1500ms, 200ms/230VAC | 1500ms, 200ms/230VAC |
| Hold-up Time | 20ms / 230VAC | ||
| Dimensions (L×W×H) | 220.4 × 130 × 48 mm | ||
| Weight | 0.9 kg | ||
| Working Temp | -30°C to +60°C (with derating) | ||
| Protections | Short circuit / Overload / Over-voltage / Over-temperature (12V/24V: hiccup mode, auto-recover; 48V: latch-off, re-power to recover) | ||
| Cooling | Free air convection (natural cooling) | ||
| Warranty | 3 years | ||
Installation Overview
- Calculate load: Sum LED strip/fixture wattage. Select appropriate ERP model with safety margin.
- Check fit: Verify enclosure dimensions against the exact 220.4 × 130 × 48 mm specification.
- Mount: Chassis mount upright in a covered, well-ventilated location (free air convection cooling).
- AC input: Connect to 180~264VAC supply (230VAC nominal).
- DC output: Connect V+ and V- to the LED load.
Why Buy from Newon?
- 100% genuine Mean Well — serial numbers verifiable at meanwell.com
- Same-day dispatch — Dubai stock
- Technical support — load calculations via our contact page
- 3-year Mean Well warranty — proven reliability for commercial projects
Related Products
- LPV Series — IP67 entry-level, non-dimmable, 20W-150W
- HLG Series — Premium CV+CC, 100W-480W, 7-year warranty

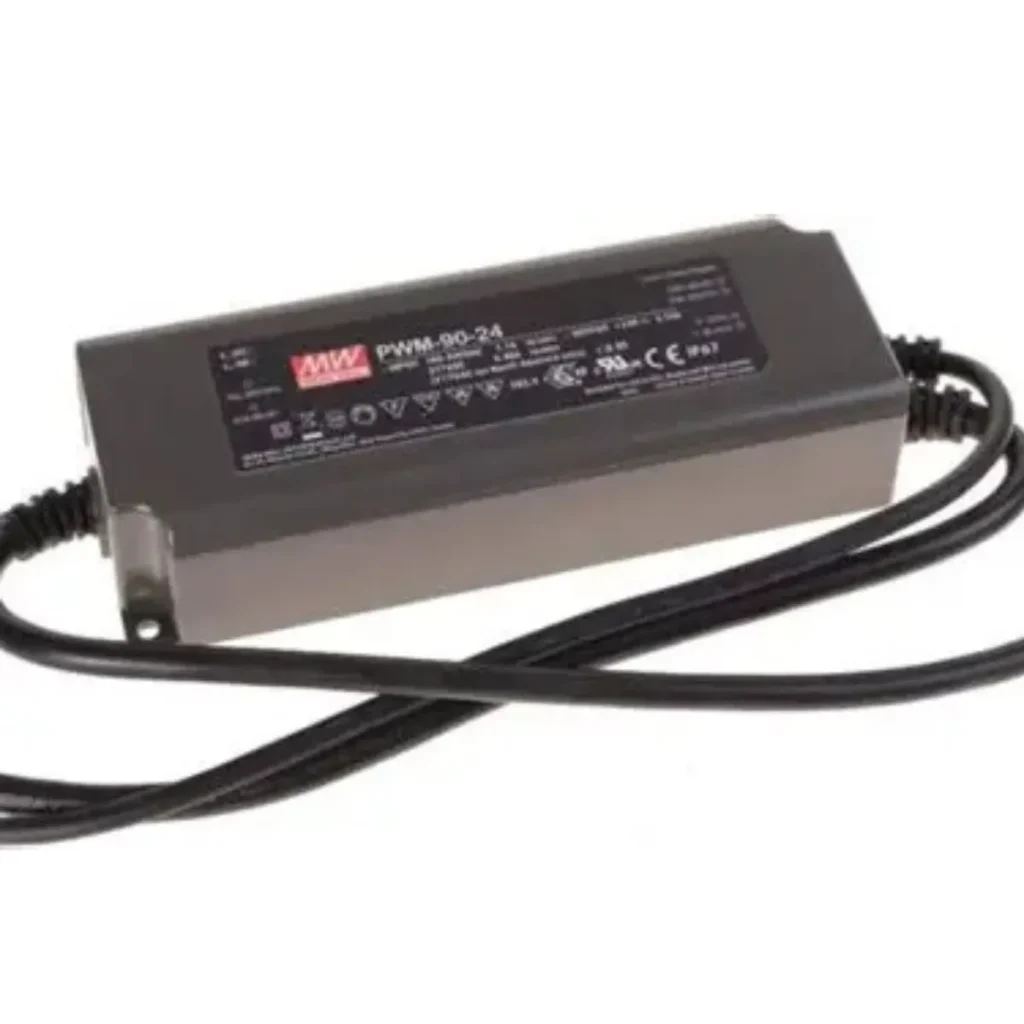

- PWM Series — IP67, 3-in-1 dimmable
Order today with fast UAE delivery. 📲 Contact our technical team. 🌐 Amazon UAE.
Frequently Asked Questions
What does "rainproof" mean for the Mean Well ERP series?The ERP series features a semi-potted aluminum case that protects internal electronics against rain splash and dust. It is designed for semi-outdoor use under eaves, pergolas, and covered patios. However, it is not fully potted or IP67-rated — it cannot be submerged in water or exposed to direct, high-pressure water jets.
What input voltage does the Mean Well ERP-350 require?The Mean Well ERP-350 series requires an AC input voltage of 180~264VAC (also accepts 254~370VDC). This range is optimized for the standard 230V/240V electrical grids used across the UAE, ensuring stable and efficient power conversion.
Can I use the ERP 350W driver for indoor lighting?Yes, the ERP 350W driver can be used for high-capacity indoor lighting projects, such as large retail displays or extensive commercial cove lighting. Because it uses free air convection cooling (no fan), it should be installed upright in a well-ventilated space or electrical cabinet to ensure proper airflow.
Are the Mean Well ERP 350W drivers dimmable?No. The standard Mean Well ERP 350W series is non-dimmable and designed for standard ON/OFF operation. If your architectural project requires dimming capabilities for high-wattage setups, you will need to use a compatible external dimmer on the DC output side or select a dedicated dimmable power supply model.
What is the warranty on Mean Well ERP drivers?The Mean Well ERP series carries a 3-year manufacturer warranty.
What are the dimensions and weight of the ERP-350?The ERP-350 series measures 220.4 × 130 × 48 mm and weighs 0.9 kg.
What is the difference in protection behavior between models?The 12V and 24V models use hiccup mode — they automatically recover after the fault condition is removed. The 48V model uses latch-off protection — it shuts down and requires you to re-power the unit to recover.
Customer Reviews
Related Products

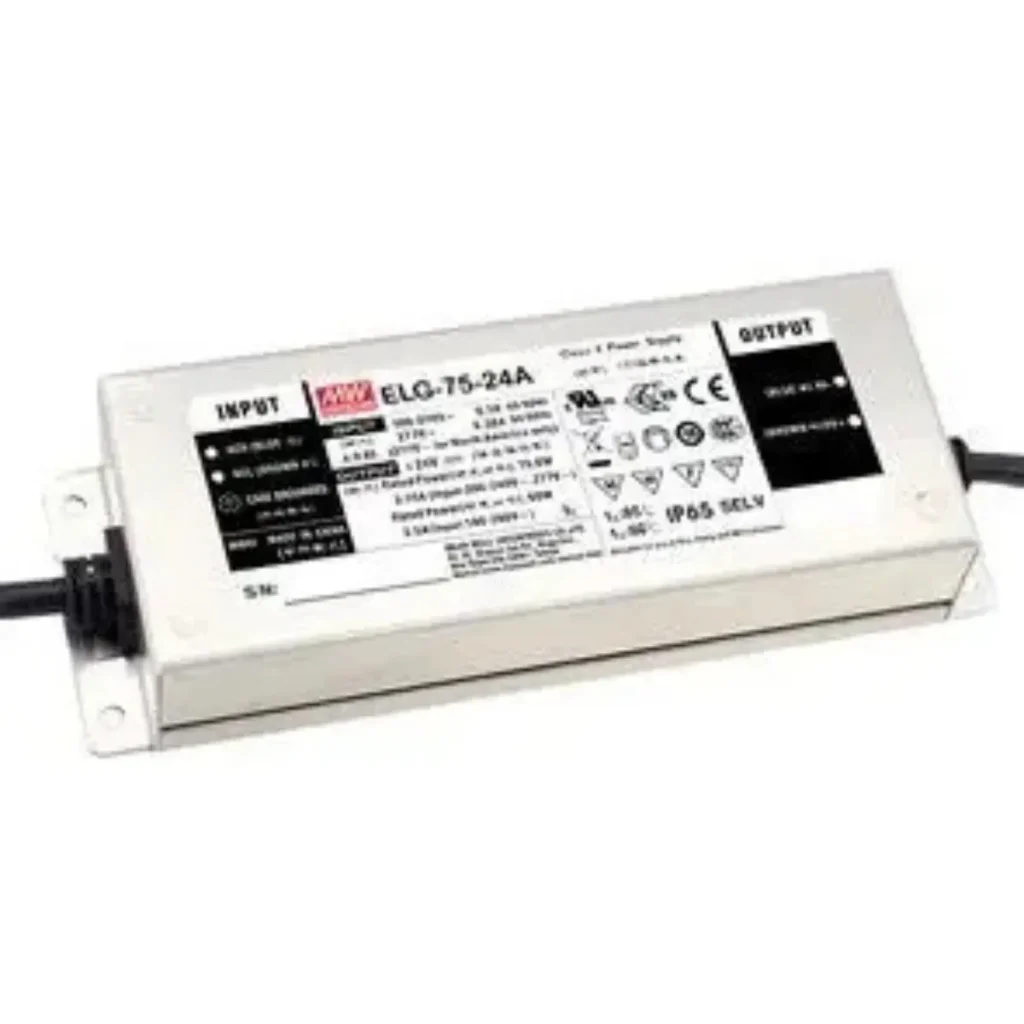

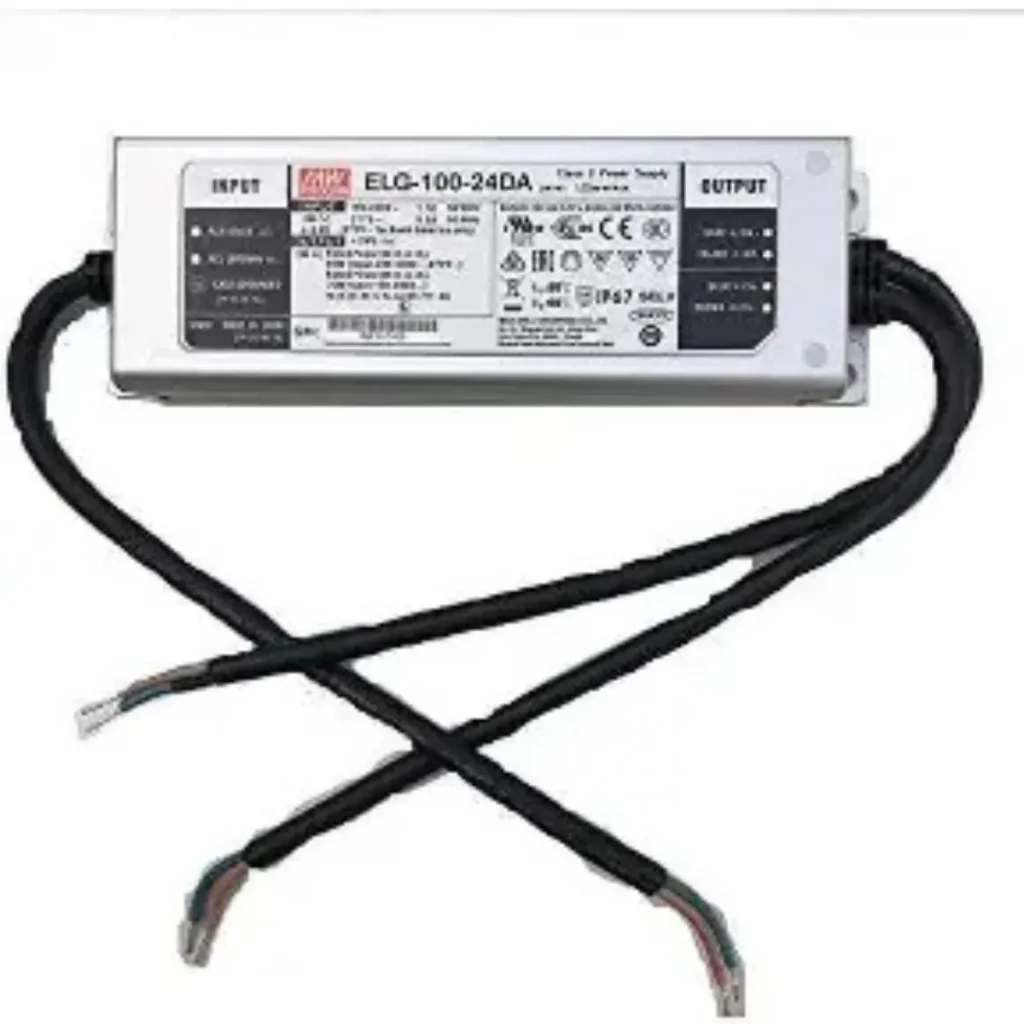

Mean Well ELG Series 24V DALI Dimmable LED Drivers (150W – 240W)
Price range: AED 186 through AED 229
Select options
This product has multiple variants. The options may be chosen on the product page
Mean Well LPV Series 24V IP67 LED Drivers (20W – 150W)
Price range: AED 58 through AED 128
Select options
This product has multiple variants. The options may be chosen on the product page
Mean Well LRS Series 24V Constant Voltage LED Drivers (35W – 600W)
Price range: AED 55 through AED 239
Select options
This product has multiple variants. The options may be chosen on the product page
Mean Well XLG Series 12V Adjustable Constant Power LED Drivers (75W – 200W)
Price range: AED 109 through AED 152
Select options
This product has multiple variants. The options may be chosen on the product page

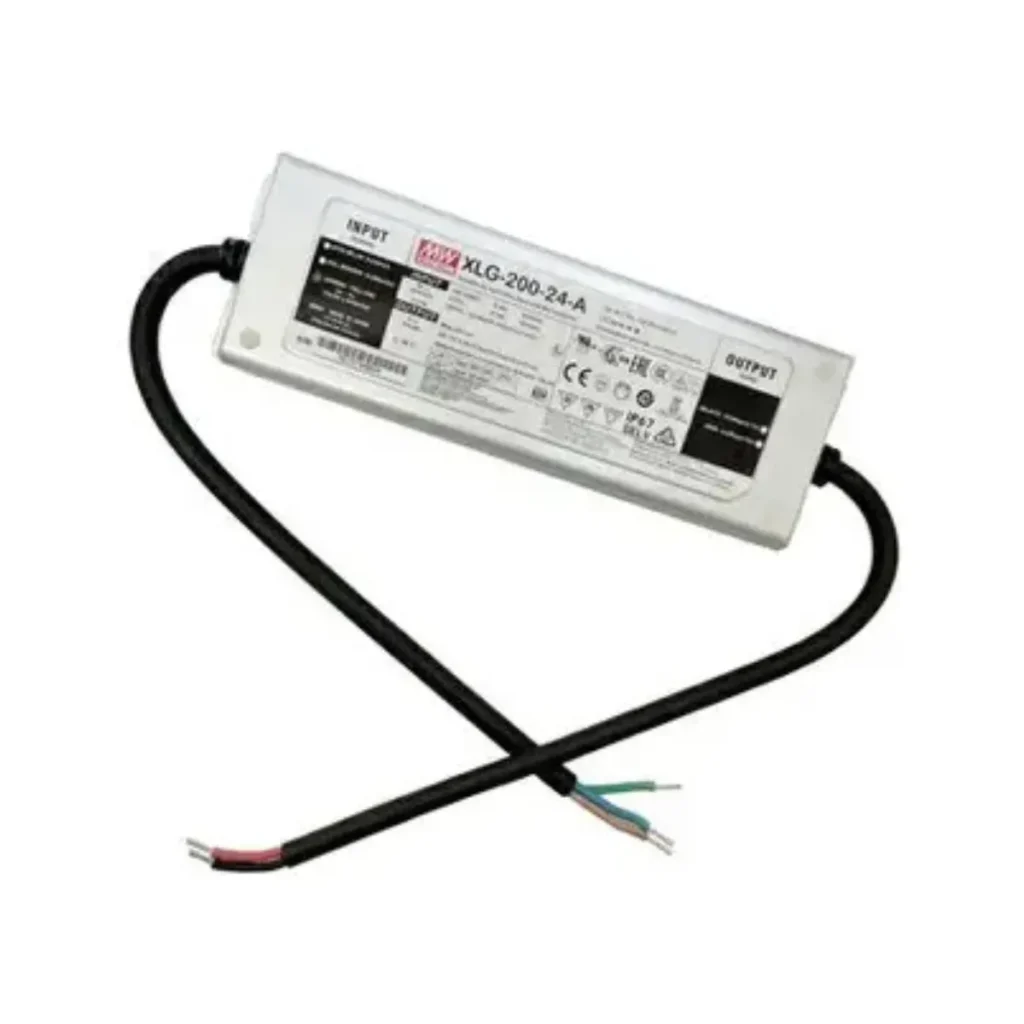

Mean Well XLG Series 24V Adjustable Constant Power LED Drivers (100W – 200W)
