What is the difference between the PWM series and standard CV LED drivers?

Standard CV drivers lower voltage to dim, causing color shift and dark spots. The Mean Well PWM series uses a PWM output topology that keeps LEDs at rated current during on-time, preserving exact color temperature and uniform brightness across the dimming range.

What dimming systems are compatible?

All models support 3-in-1 dimming: 0-10VDC analog, 10V PWM digital signal, and 0-100KΩ resistance potentiometer. No external decoders required.

What is the minimum dimming level?

It is model-specific. The PWM-60 dims 0~100%. The PWM-200 Blank type dims 5.5~100%. Confirm your specific model's minimum before specifying for deep-dimming cove projects.

Is it safe for video recording environments?

Output PWM frequency varies by model (PWM-60: 300Hz; PWM-200: 3.97kHz). For video-critical installations, confirm your specific model's output frequency before specifying to avoid camera banding.

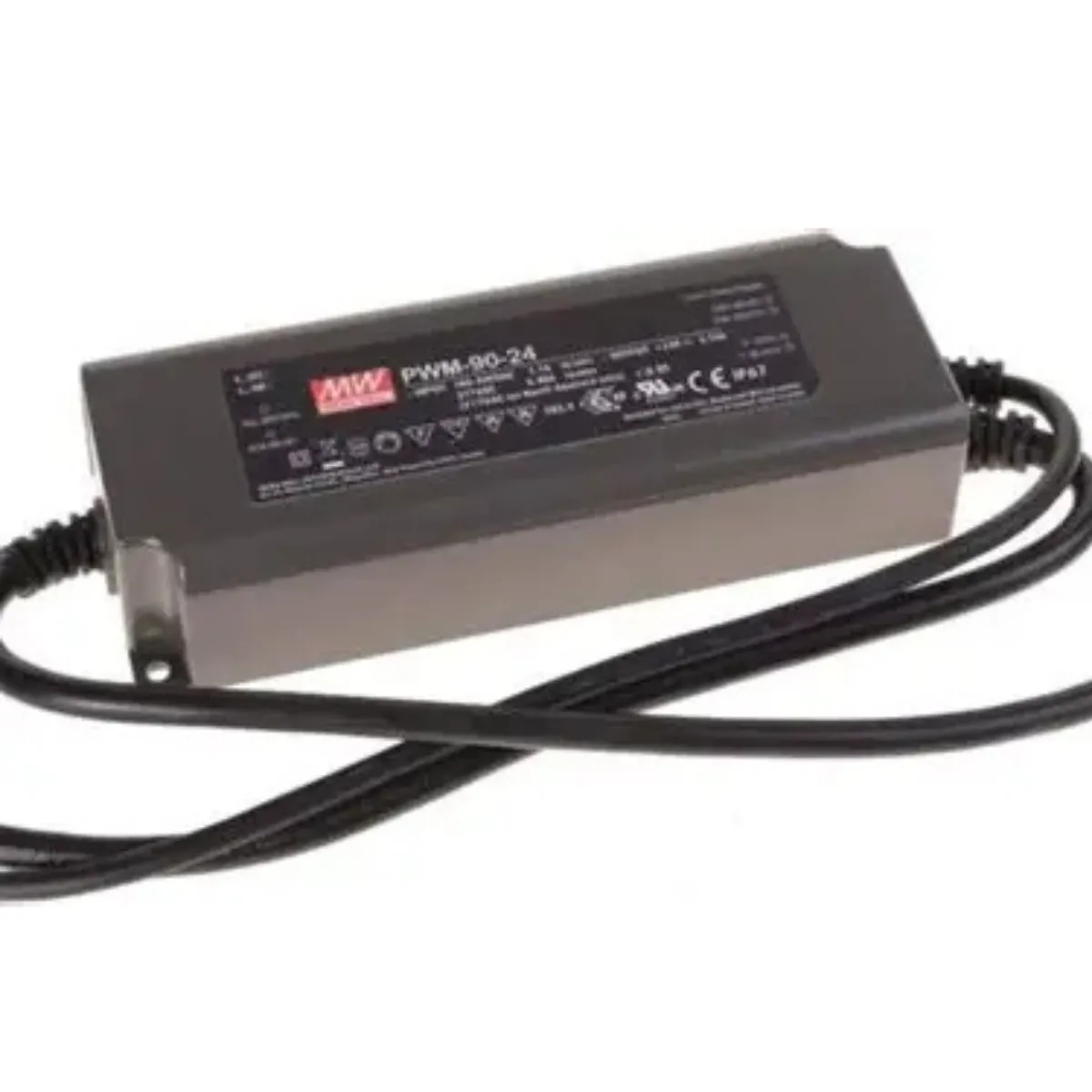

Mean Well PWM Series 24V IP67 LED Drivers (60W – 200W)

Name: Mean Well PWM 24V LED Driver 60W-200W | IP67 Dimmable | Newon
SKU: MW PWM 24V IP67 LED Drivers (60W - 200W)
Availability: InStock

Mean Well

Price range: AED 128 through AED 229

SKU: MW PWM 24V IP67 LED Drivers (60W - 200W)

The Mean Well PWM 24V LED driver series delivers professional IP67-rated power engineered for 24V LED strip lighting. Select 60W, 90W, 120W, or 200W below.

PWM Output Topology: Holds LEDs at rated current during on-time for constant color temperature and no dark spots while dimming.
3-in-1 Dimming: Native support for 0-10VDC, 10V PWM signal, and 0-100KΩ resistance.
Model-specific dimming range: PWM-60 dims 0~100%; PWM-200 (Blank) dims 5.5~100%. Confirm your model for deep-dimming projects.
IP67 fully sealed: Safe for outdoor coves, facades, spas, and high-humidity enclosures.
Wide input: 90~305VAC (PWM-200: 100~305VAC), compatible with DEWA and ADDC grids.
100% genuine Mean Well: Verifiable serials, 5-year warranty.

Same-day dispatch from Dubai. Load calculations via our technical support team. Browse the full Mean Well collection.

Special Discount!

Hurry and get discounts up to 20% Read more

Watt

Clear

Send Inquiry

Live Chat

Add to compare

Add to wishlist

Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Description

Mean Well PWM 24V LED Driver Series — Precision Dimmable Power for LED Strips

The Mean Well PWM 24V LED driver is the specification-grade choice for dimmable 24V LED strip installations across Dubai and Abu Dhabi. Unlike linear Constant Voltage drivers that shift color temperature and create dark patches when dimmed, the PWM series uses a PWM output topology that keeps LED chips at their rated current during on-time — preserving exact color consistency across the dimming range. Available in 60W, 90W, 120W, and 200W, this IP67-rated series serves luxury villa coves, facade washing, and hospitality lighting.

Why PWM Topology Matters for LED Strips

Linear CV dimming lowers voltage, which changes the LED's operating point and causes visible color shift and end-of-run dark spots. The PWM topology switches the full 24V on/off at the model's output frequency, so the LEDs always see their rated voltage. The result is stable color temperature and uniform brightness at low dimming levels.

Honest Dimming & Frequency Guidance (Per Model)

Dimming methods (all models): 3-in-1 — 0-10VDC, 10V PWM signal, and 0-100KΩ resistance.
Dimming range: PWM-60: 0~100%. PWM-200 (Blank type): 5.5~100%. Confirm your model's minimum before specifying for deep-dimming cove projects.
Output PWM frequency: PWM-60: 300Hz (typ.). PWM-200: 3.97kHz (Blank). For video-critical installations (studios, broadcast, retail video walls), confirm your model's frequency before specifying.

IP67 Protection for UAE Environments

The fully sealed metal enclosure (IP67) allows safe installation in outdoor architectural coves, facade enclosures, and high-humidity indoor spaces such as spas and pool rooms. Per-model case temperature ratings reach +85°C (PWM-120: +90°C), providing real headroom in UAE summer enclosures.

60W vs 90W vs 120W vs 200W — Which Driver Do You Need?

Application	Recommended	Max Continuous Load (1.15× factor)
Short cove runs, cabinets (10W/m)	PWM-60-24	~5.2 m (52W max)
Medium perimeter coves (14.4W/m)	PWM-90-24	~5.4 m (78W max)
Long living-room coves (14.4W/m)	PWM-120-24	~7.2 m (104W max)
Facade washing, outdoor lines (19.2W/m)	PWM-200-24	~8.6 m (173W max)

Never run at 100% continuous load in UAE heat. Always apply the 1.15× safety factor.

Complete Technical Specifications (Per-Model, Datasheet-Verified)

Specification	PWM-60-24	PWM-90-24	PWM-120-24	PWM-200-24
Rated Power / Current	60W / 2.5A	90W / 3.75A	120W / 5.0A	200W / 8.33A
Output Voltage	24V DC (PWM topology)
Input Voltage	90~305VAC			100~305VAC
Efficiency	Up to 89%	Up to 90.5%	Up to 94%	See datasheet
IP Rating	IP67
Working Temp (Case)	-40°C to +85°C	-40°C to +85°C	-40°C to +90°C	-40°C to +85°C
Surge Protection	2kV L-L	See datasheet	See datasheet	2kV L-L
Dimensions (L×W×H)	150 × 53 × 35 mm	171 × 63 × 37.5 mm	191 × 63 × 38 mm	262 × 68 × 38.5 mm
Weight	0.49 kg	0.77 kg	0.97 kg	See datasheet
Warranty	5 years (Mean Well)

Installation & Dimming Wiring Overview

Calculate load: Sum strip wattage × 1.15. Select model.
Mount: Ventilated enclosure, 50mm clearance for passive cooling.
AC input: Wire L, N, PE.
DC output: Wire V+ / V- to strip.
Dimming: Connect DIM+ / DIM- to your 0-10V controller, PWM signal, or potentiometer. Never connect dimming wires to AC mains.

⚠️ Licensed electrician required for AC wiring per DEWA / UAE regulations.
