What is the output mode of the Mean Well XLG 24V series?

The Mean Well XLG 24V series operates in Constant Power Mode (CV+CC). It delivers a stable 24V DC Constant Voltage (CV) output under normal conditions, with a Constant Current (CC) limiting region (16.8~24V) to protect LED modules during overloads.

Can I dim the XLG 24V series with DALI or 0-10V?

No. The -A suffix means NO external dimming interface. Output adjustment is manual only via the built-in potentiometer to fine-tune the output current (Amps). For DALI dimming, choose the ELG Series. For 0-10V/PWM, choose the PWM Series.

Is the XLG 24V series suitable for UAE outdoor junction boxes?

Yes. The IP67 sealed metal housing protects against dust and water. The working temperature range is -40°C to +90°C (Max Case Temp +90°C), providing maximum thermal headroom for UAE summer enclosures that exceed 65°C ambient.

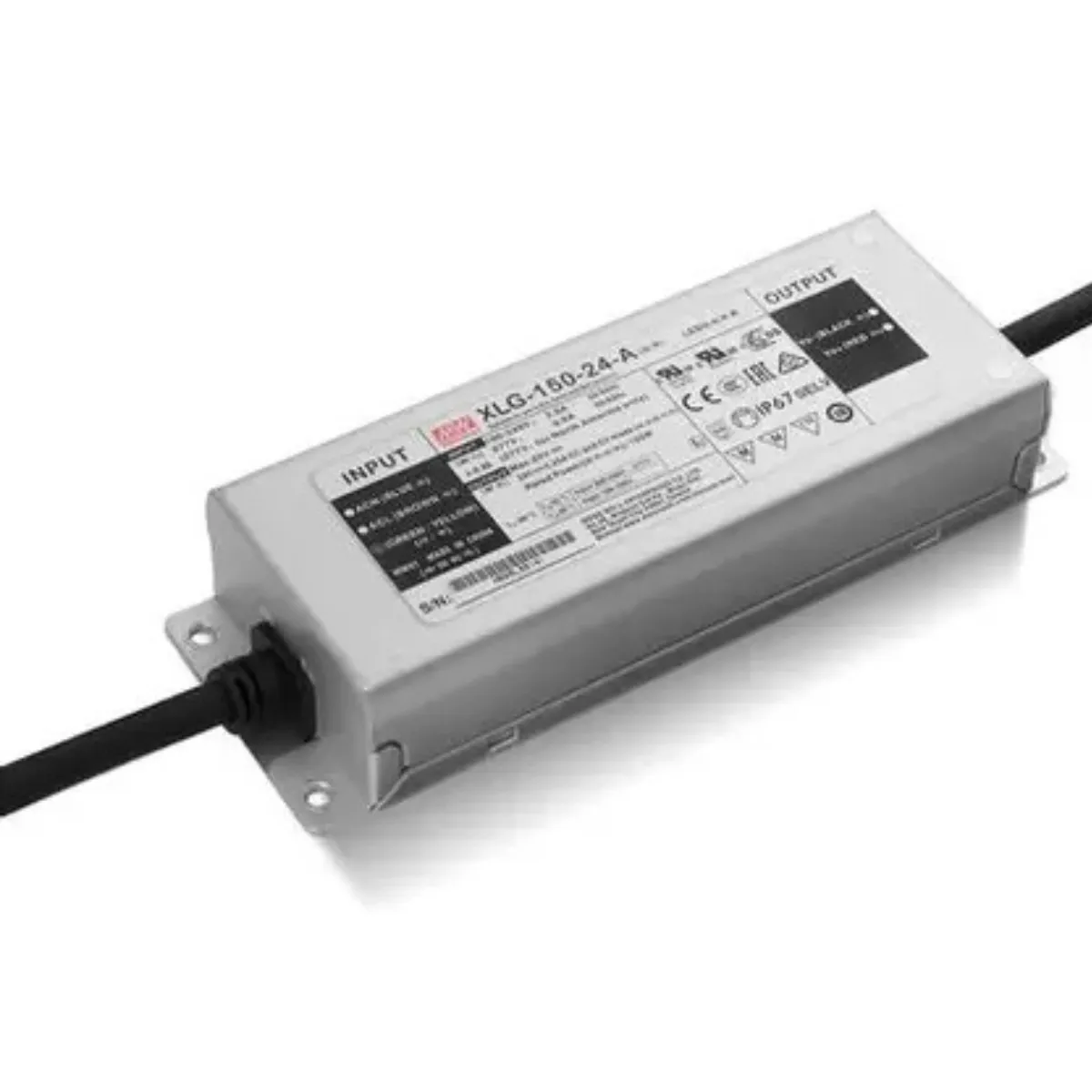

Mean Well XLG Series 24V Adjustable Constant Power LED Drivers (100W – 200W)

Name: Mean Well XLG 24V LED Driver 100W-200W | IP67 | Newon
SKU: MW XLG 24V Adjustable CP Drivers (100W - 200W)
Availability: InStock

Mean Well

Price range: AED 120 through AED 152

SKU: MW XLG 24V Adjustable CP Drivers (100W - 200W)

The Mean Well XLG 24V LED driver UAE series delivers professional IP67-rated constant power with a stable 24V DC output. Select 96W, 150W, or 199.2W below for your 24V LED strips and architectural modules.

IP67 fully sealed — survives UAE summers, coastal humidity, and desert dust
Wide case temperature — -40°C to +90°C working range (Max Case Temp +90°C)
Current adjustable — fine-tune output Amps via built-in potentiometer
Active PFC ≥0.95 — reduces DEWA reactive power charges at 230VAC
Surge protection 4kV/6kV — handles UAE summer electrical storms
100% genuine Mean Well — serial numbers verifiable, 5-year warranty

Same-day dispatch from Dubai. Expert load calculations via our technical support team. Browse the full Mean Well collection.

Special Discount!

Hurry and get discounts up to 20% Read more

Watt

Clear

Send Inquiry

Live Chat

Add to compare

Add to wishlist

Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Description

Mean Well XLG 24V Series Adjustable LED Drivers — Engineered for UAE Extremes

The Mean Well XLG 24V LED driver UAE series is a professional-grade, IP67-sealed power solution designed for 24V DC outdoor lighting projects across Dubai, Abu Dhabi, and the GCC. Operating in Constant Power Mode (CV+CC), these drivers deliver a stable 24V Constant Voltage output with a Constant Current limiting region to protect sensitive LED modules. Choose between 96W, 150W, and 199.2W capacities to power 24V LED strip arrays, architectural wall washers, and facade lighting.

All models operate from a universal 100~305VAC input (and 142~431VDC), fully compatible with DEWA and ADDC grid standards. The IP67 metal housing protects against dust and temporary water immersion, while the 5-year Mean Well global warranty ensures long-term project reliability.

What Is Constant Power Mode (CV+CC)? (And Why It Matters)

Unlike standard CV drivers that shut down during overloads, the XLG series utilizes Constant Power Mode topology. This means the driver operates in Constant Voltage (CV) mode at 24V under normal conditions. However, if the LED forward voltage drops or an overload occurs, the driver seamlessly transitions into its Constant Current (CC) region (16.8~24V). This current-limiting feature prevents the driver from shutting down and protects the LEDs from thermal runaway, ensuring continuous operation even in extreme UAE heat.

Why IP67 & Wide-Temperature Rating Matters in the UAE

Standard indoor drivers (IP20) fail rapidly in UAE outdoor junction boxes due to heat buildup and humidity. The XLG 24V series solves this with:

IP67 fully sealed metal housing: Dust-tight and protected against temporary water immersion (IEC 60529).
Extreme case temperature range: Rated for -40°C to +90°C continuous working. The Max Case Temperature (Tcase) is also +90°C, providing maximum thermal headroom in UAE summer enclosures that routinely exceed 65°C ambient.
Active PFC ≥0.95 (at 230VAC): Reduces grid harmonics and reactive power charges.
Surge protection 4kV L-L / 6kV L-G: Built-in immunity against summer electrical storms.

96W vs 150W vs 199.2W — Which Driver Do You Need?

Application	Recommended	Calculation (Max Continuous Load)

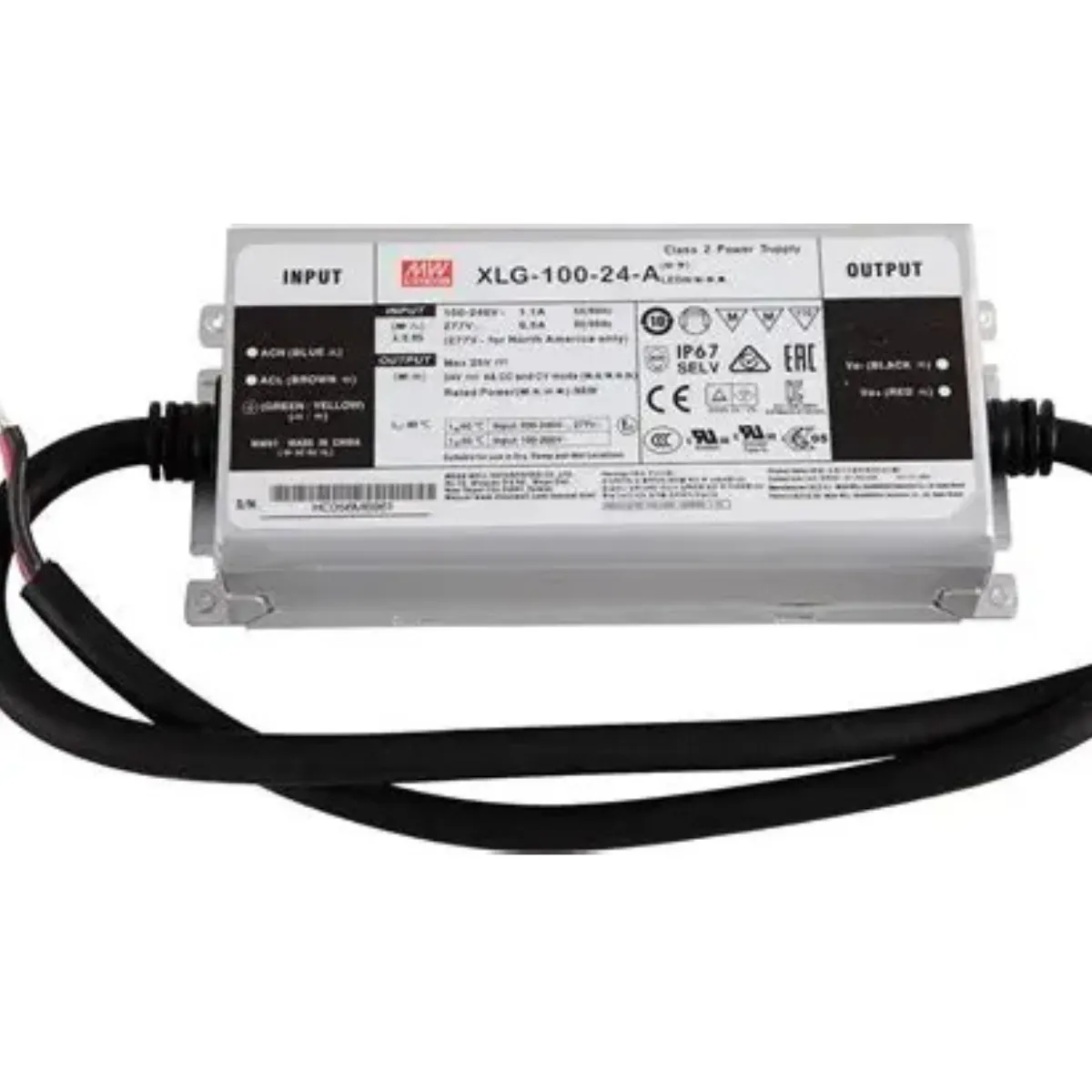

Small facade washers, 5-6m LED strip runs (14.4W/m)	XLG-100-24-A	~5.7 meters of 14.4W/m strip (96W ÷ 1.15 safety factor = 83W max)
Medium architectural lighting, perimeter bollards	XLG-150-24-A	~9 meters of 14.4W/m strip (150W ÷ 1.15 = 130W max)

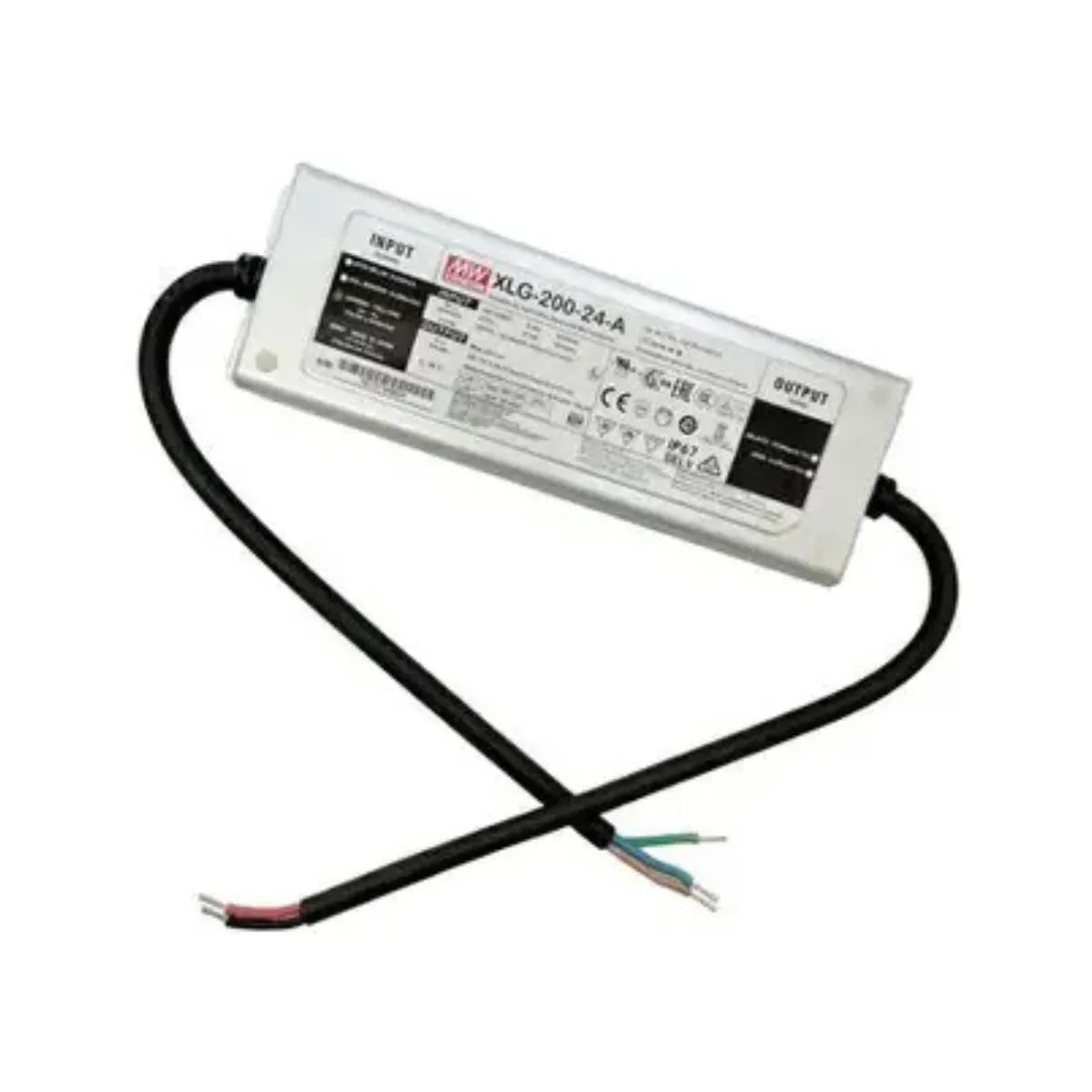

Large flood arrays, long linear runs, parking canopies	XLG-200-24-A	~12 meters of 14.4W/m strip (199.2W ÷ 1.15 = 173W max)

Never run a driver at 100% continuous load in UAE summer heat. Always apply a 1.15× safety factor.

Complete Technical Specifications

Specification	XLG-100-24-A	XLG-150-24-A	XLG-200-24-A
Rated Output Power	96W	150W	199.2W
Output Voltage	24V DC (CV+CC Mode, CC Region: 16.8~24V)
Rated Current	4A	6.25A	8.3A
Current Adj. Range	2~4A	3.2~6.25A	4.15~8.3A
Input Voltage	100~305VAC, 142~431VDC, 47~63Hz
Power Factor	≥0.97/115VAC, ≥0.95/230VAC, ≥0.92/277VAC
Efficiency (Typ.)	Up to 92%	Up to 93%	Up to 94%
IP Rating	IP67
Working Temp (Case)	-40°C to +90°C
Surge Protection	4kV L-L / 6kV L-G
Dimensions (L×W×H)	140 × 63 × 32 mm	180 × 63 × 35.5 mm	199 × 63 × 35.5 mm
Weight	0.58 kg	0.80 kg	0.85 kg
Warranty	5 years (Mean Well)

Potentiometer Adjustment: How It Works

The XLG 24V series features a small potentiometer dial on the housing to fine-tune the output current (Amps), allowing you to match the exact current requirements of your LED modules:

Power off the driver and allow capacitors to discharge.
Remove the rubber sealing plug on the output end.
Use a small flat-head screwdriver to adjust the dial. Measure the output current with a multimeter while adjusting.
Replace the rubber sealing plug firmly to maintain the IP67 rating.

⚠️ Critical: Never leave the potentiometer access open in outdoor installations. Losing the rubber plug voids dust/water protection and the warranty.

Installation Overview

Calculate load: Sum all 24V LED wattage. Multiply by 1.15. Select 96W, 150W, or 199.2W.
Mount: Install in a ventilated outdoor enclosure using built-in chassis ears. Maintain 50mm clearance.
AC input: Wire L, N, PE to terminal block. Use 1.5mm² cable.
DC output: Wire V+ and V- to LEDs.
Seal: Confirm rubber plug is fully seated. Close junction box.

⚠️ Licensed electrician required for AC wiring per DEWA and UAE Ministry of Energy regulations.

10-Year TCO: Mean Well vs Generic 24V Driver

Cost Factor (150W Load)	Mean Well XLG (93% eff.)	Generic Driver (85% eff.)
Purchase price	AED 128	AED 80
Annual energy waste (12 hrs/day)	≈ AED 28/year	≈ AED 75/year
Replacements in 10 years (UAE heat)	0 (1 unit lasts)	2 (3 units total)
10-year total cost	AED 408	AED 990
Total Savings	AED 582+ per driver

Why Buy from Newon?

100% genuine Mean Well — serial numbers verifiable at meanwell.com
Same-day dispatch — Dubai stock, not 45-day shipping
Technical support — load calculations and wiring guidance via our contact page

Related Mean Well Products

LPV Series 24V — Outdoor IP67, non-adjustable CV
PWM Series 24V IP67 — 0-10V/PWM dimming
ELG Series 24V DALI — Smart digital dimming

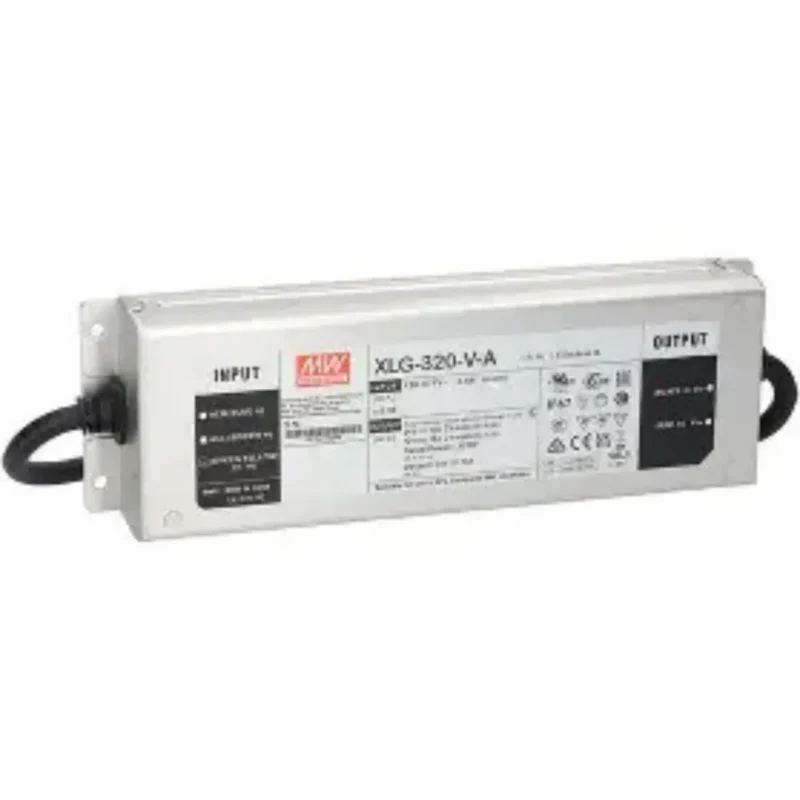

XLG Series High-Voltage — For 48V/54V street lights
