Landscape Lighting for Dubai Villas, Resorts & Hotels: A Complete UAE Design Guide 2026

Well-planned landscape lighting transforms an outdoor area from invisible to unforgettable after sunset. In the UAE, where gardens, palm-lined entrances, resort pools, and hotel terraces define the property experience, lighting is not decoration — it is architecture after dark.

This guide explains how to plan landscape lighting for villas, resorts, hotels, restaurants, residential communities, and commercial properties in Dubai and across all seven emirates. It covers colour temperature, IP ratings, DEWA compliance, palm tree ring light sizing, lux levels, beam angles, control systems, installation costs, and authority coordination.

For lighting products and project enquiries, visit Newon.ae, browse the online shop, or explore the palm tree lighting category.

Quick Answer: How Should Landscape Lighting Be Planned in the UAE?

Start with the purpose of each light, divide the site into lighting zones, choose the right beam angle and mounting position, control glare and spill light, calculate the connected load against DEWA’s Lighting Power Density (LPD) limits, select equipment suitable for 45°C+ ambient temperatures and sand exposure, and coordinate the electrical installation with the relevant authority and consultant.

Do not choose fixtures only by appearance, wattage, or an IP number. A villa garden in Emirates Hills needs a different approach from a hotel arrival court on the Palm Jumeirah, a resort pathway in Ras Al Khaimah, or a restaurant terrace in Downtown Dubai.

Why Landscape Lighting Matters for UAE Outdoor Spaces

Landscape lighting defines how an outdoor space is experienced at night. It guides movement along walkways, highlights palm trees and sculptures, creates visual depth in gardens, supports arrival sequences, identifies terraces, and provides consistent brand identity across hospitality properties.

With Dubai issuing 10,776 building permits in Q1 2026 — a 12% year-on-year increase — and the UAE LED lighting market projected to reach AED 8.13 billion by 2034, the demand for professional outdoor lighting has never been higher. Lighting should not be treated as an afterthought added at the end of construction. Early coordination allows the designer to plan cable routes, equipment positions, access points, drainage, control zones, mounting details, tree growth, and maintenance access.

Four Lighting Layers for UAE Villas, Resorts, and Hotels

The most convincing landscape schemes use contrast and hierarchy rather than maximum brightness everywhere. A professional lighting designer decides what the viewer notices first, second, and third, then controls brightness, beam direction, colour appearance, and operating schedule accordingly.

Lighting Layer	Purpose	Typical Fixtures	Examples
Ambient lighting	General visibility and comfortable background level	Bollard lights, post tops, diffuse wall washers	Terraces, courtyards, garden seating, arrival areas
Path and circulation lighting	Guide routes, steps, edges, and level changes	Bollards, inground uplights, step lights	Walkways, garden paths, stairs, ramps, connections between buildings
Accent lighting	Draw attention to selected features without equal illumination	Adjustable spotlights, palm tree ring lights, inground uplights	Palm trees, specimen planting, sculptures, water features, textured walls
Architectural and wayfinding	Support arrival, identity, orientation, and boundary definition	Flood lights, linear wall washers, facade bars	Entrances, gates, signage zones, reception approaches, boundary walls

Landscape Lighting Fixture Types for the UAE Climate

Equipment selection must follow the application and installation conditions. The UAE’s climate — 45°C+ ambient temperatures, sand, humidity, irrigation spray, and coastal salt — demands specific materials and protection ratings.

Fixture Type	Best Application	Recommended IP Rating	Material / Finish	Key Spec
Bollard lights	Pathways, driveways, garden borders	IP65 minimum; IP67 coastal	Die-cast aluminium, powder-coated	3000K, 5W–12W, 360° or directional
Inground uplights	Palm trees, columns, sculptures, signage	IP67 minimum; IP68 for wet areas	316 stainless steel, tempered glass	IK08+ impact rating, anti-siphon drainage
Palm tree ring lights	Date palms, coconut palms, royal palms	IP66 minimum; IP67 coastal	304 stainless steel ring (3mm thick)	400mm (4 spots) or 600mm (6 spots), 12W COB
LED flood lights	Facade washing, large trees, boundary walls	IP65 minimum; IP67 outdoor	Aluminium housing, tempered glass lens	30W–200W, 15°–120° beam options
LED wall washers	Boundary walls, feature walls, water features	IP65 minimum; IP67 coastal	Anodised aluminium, silicone gaskets	Linear 0.3m–1.2m, 3000K–4000K
Step and deck lights	Stairs, terraces, pool decks, seating	IP67 minimum; IP68 submersible	316 stainless steel or marine-grade aluminium	Recessed or surface, 3W–7W, anti-slip

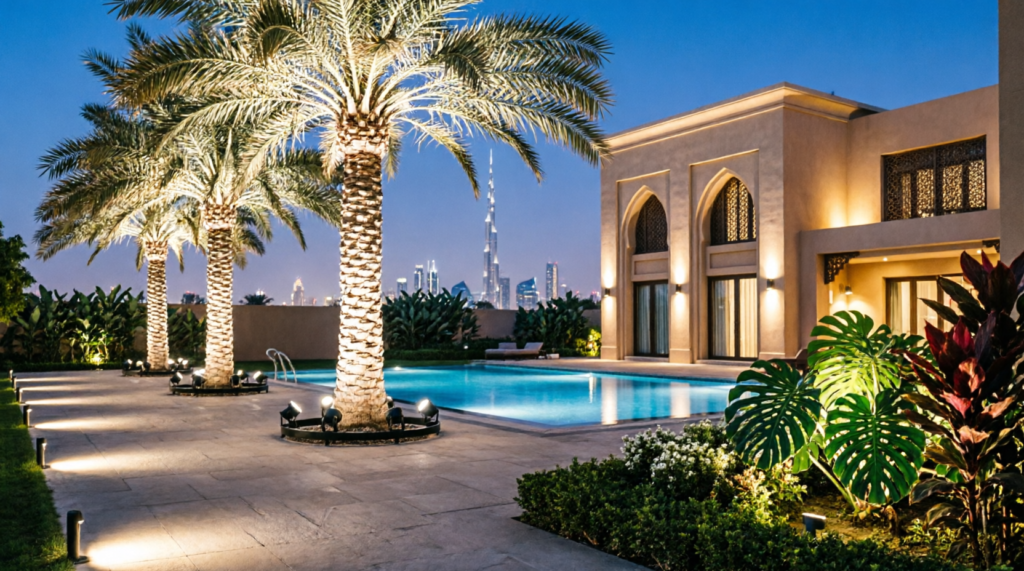

Palm Tree Lighting for Villas and Hospitality Projects

Palm trees are the defining vertical feature of UAE landscapes. A ring-light arrangement creates a distinctive halo or crown effect that transforms an ordinary Date Palm into a luxury night-time landmark. But the fixture position, tree form, viewing angle, brightness, beam distribution, and maintenance method must be assessed on-site.

Palm Tree Ring Light Sizing Guide

Selecting the correct ring diameter is critical for even illumination and secure mounting. The ring must clear the trunk without damaging the bark, while positioning spotlights at the optimal angle for crown lighting.

Ring Diameter	Tree Trunk Diameter Range	Number of Spotlights	Best For
400mm	150mm – 280mm	4 × 12W COB spotlights	Young Date Palms, villa gardens, courtyard palms
500mm	250mm – 380mm	5 × 12W COB spotlights	Medium Date Palms, resort pathways
600mm	300mm – 480mm	6 × 12W COB spotlights	Mature Date Palms, hotel entrances, royal palms
700mm+	350mm – 680mm	6–8 × 12W COB spotlights	Heritage palms, commercial installations

Newon provides a 400mm Palm Tree LED Ring Light and a 600mm Palm Tree LED Ring Light. Both use 304 stainless steel rings (3mm thick), 12W COB lamps with 30° beam angles, and rotatable holders for precise aiming. Check the live product page for current technical information before specification.

How Many Spotlights Per Palm Tree?

The number of spotlights determines the completeness of the crown illumination:

• 4 spotlights (400mm ring): Suitable for smaller palms up to 4–5 metres height. Creates a quadrant light pattern with subtle shadowing between beams.
• 6 spotlights (600mm ring): Ideal for mature palms 6–12 metres height. Delivers near-360° crown coverage with overlapping beams for uniform brightness.
• 8+ spotlights (700mm+ ring): Used for heritage or commercial palms where maximum visual impact is required.

How to Install Palm Tree Ring Lights: Step-by-Step

Proper installation ensures safety, longevity, and optimal light distribution. Always use a licensed electrical contractor familiar with DEWA outdoor wiring regulations and IP67-rated Mean Well LED drivers.

1. Measure the trunk diameter. Use a measuring tape at the proposed mounting height (typically 1.5–2.5 metres above ground). Select the ring size that matches the trunk diameter range.
2. Choose the mounting height. For Date Palms, mount the ring at 1.8–2.2 metres to clear the lower frond stubs while illuminating the crown. For Coconut Palms, mount higher at 2.5–3.0 metres.
3. Secure the stainless steel ring. Open the ring hinge, wrap around the trunk, and tighten the adjustable clamps. Do not overtighten — allow 5–10mm clearance for trunk growth and seasonal expansion.
4. Aim the spotlights. Adjust each rotatable holder to target the crown centre. Overlap beam edges by 15–20% for uniform coverage. Avoid aiming directly at neighbouring properties or guest room windows.
5. Connect the driver and cable. Use IP68-rated cable glands and LSZH (low smoke zero halogen) cable. Install the Mean Well LED driver in a ventilated, IP65-rated enclosure. Calculate voltage drop for cable runs over 15 metres.
6. Commission and aim at night. Power on after sunset and fine-tune each spotlight angle. Verify no glare toward roads, windows, or pedestrian paths. Set the timer or photocell schedule.

Colour Temperature and Visual Comfort for UAE Outdoor Spaces

Colour appearance affects how planting, stone, concrete, painted surfaces, water, and skin tones are perceived at night. The wrong colour temperature can make a luxury villa garden look like a parking lot.

Colour Temperature	Appearance	Best Application	UAE Context
2700K (Warm White)	Very warm, golden, candle-like	Intimate villa gardens, residential terraces, restaurant dining	Most popular for Dubai villas; complements sandstone and travertine
3000K (Soft White)	Warm with slight clarity	Resort pathways, hotel pools, hospitality arrival areas	Versatile choice for mixed-use properties; renders greenery accurately
4000K (Neutral White)	Clean, crisp, clinical	Security perimeters, parking areas, commercial facades	Use sparingly in residential settings; can feel cold in garden contexts
5000K+ (Cool White)	Blue-tinted, very bright	Sports facilities, construction sites, industrial areas	Not recommended for villas or hospitality; causes light pollution

Design rule: Use consistent colour temperature within the same visual scene. Mixed temperatures from nearby fixtures create an uncoordinated appearance. For Dubai’s luxury villa market, 2700K–3000K is the professional standard.

Beam Angles and Optics for Landscape Lighting

The beam angle determines how concentrated or spread the light is. Choosing the wrong angle results in either harsh hotspots or weak, washed-out features.

Beam Angle	Type	Best For	Mounting Distance
8°–15°	Very narrow / Spot	Tall palm crowns, distant sculptures, flagpoles	3–8 metres from target
24°–30°	Narrow / Accent	Medium palms, columns, signage, water features	1.5–4 metres from target
36°–60°	Medium / Flood	Shrub beds, low walls, garden art, small trees	0.5–2 metres from target
90°–120°	Wide / Wash	Large facades, boundary walls, wide canopies	0.3–1 metre from surface

Newon’s palm tree ring lights use a 30° beam angle — the optimal balance between crown penetration and spread for UAE Date Palms 6–12 metres tall.

Recommended Lux Levels for UAE Landscape Lighting

Lux (lumens per square metre) measures illuminance on a surface. These are the industry-standard recommendations for outdoor lighting design in the UAE:

Application	Recommended Lux Level	Uniformity (Emin/Eav)	Glare Control
Garden pathways and walkways	10–20 lux	0.25 minimum	Shielded bollards or inground fixtures
Residential driveways	20–30 lux	0.25 minimum	Recessed or directional only
Hotel and resort entrances	50–100 lux	0.40 minimum	Full cut-off optics required
Accent lighting (palms, sculptures)	100–300 lux at feature surface	Not applicable	Adjustable shielding, back-light control
Outdoor dining and terraces	20–50 lux	0.30 minimum	Diffused sources, no direct view of lamp
Security and perimeter	30–50 lux	0.30 minimum	Motion-activated to reduce spill
Pool decks and water features	50–100 lux	0.40 minimum	Submersible IP68 fixtures only

IP Ratings, Heat, Dust, and Coastal Exposure

Outdoor lighting in the UAE encounters dust, 45°C+ ambient temperatures, irrigation spray, humidity, sand, and — in coastal locations like JBR, Palm Jumeirah, and Abu Dhabi Corniche — salt-laden air.

• General outdoor (gardens, pathways): Minimum IP65 (dust-tight, protected against water jets)
• Inground, step, and deck lighting: Minimum IP67 (temporary immersion) or IP68 (continuous submersion)
• Pool areas and fountains: IP68 submersible fixtures with 12V/24V low-voltage supply
• Coastal properties: IP67 and marine-grade 316 stainless steel to resist salt corrosion
• Driver enclosures: IP65 minimum per DEWA Water Ingress Prevention Circular 2024

An IP rating describes protection under defined test conditions. It does not automatically prove suitability for every location. Check the luminaire, driver, junction box, connector, gland, enclosure, mounting hardware, and installation method as separate parts of the technical review.

Glare and Light-Spill Control

Outdoor lighting should be useful, targeted, controlled, and comfortable. Avoid aiming bright fixtures directly toward homes, guest-room windows, drivers, pedestrians, or the sky. Use shielding, careful positioning, lower output, suitable optics, and time controls.

DarkSky’s Five Principles for Responsible Outdoor Lighting provide an internationally recognised framework:

1. Useful: Light only where and when it is needed
2. Targeted: Direct light downward and shield the source
3. Low level: Use the minimum brightness necessary
4. Controlled: Use timers, photocells, and motion sensors
5. Warm-coloured: Use 2700K–3000K to reduce sky glow and ecological impact

These principles align with Cabinet Resolution No. 25 of 2022 regarding the regulation of outdoor lighting products in the UAE.

Smart Controls and Operating Schedules

Controls align landscape lighting with actual property use. A villa may need a welcome scene at 6 PM and a reduced late-night setting at 11 PM. A resort may require separate arrival, pathway, pool, garden, and event scenes.

Before specifying, confirm compatibility between the luminaire, driver, power supply, dimming method, controller, wiring, and commissioning process:

Control Protocol	Best For	Compatibility
DALI-2	Hotels, resorts, commercial complexes with BMS integration	Mean Well HLG/XLG/ELG DALI models
Casambi	Villas, restaurants, retrofit projects	Bluetooth mesh, app-based control
0–10V / 1–10V	Simple dimming for pathways and gardens	Most Mean Well 3-in-1 drivers
DMX512	Dynamic RGB facades, water features, event lighting	DMX decoders + compatible drivers
Photocell + Timer	Basic on/off automation, cost-effective	Mean Well ELG D2 timer models

Newon stocks DALI-2, Casambi-ready, and 3-in-1 dimmable Mean Well LED drivers for all control architectures.

DEWA Compliance and Lighting Power Density for Landscape Projects

For Dubai projects, landscape lighting must comply with DEWA Green Building Regulations Section 502.05. Exterior LPD limits for landscape applications include:

Exterior Application	DEWA LPD Limit
Landscape / hardscape lighting	0.6 W/m² of lit area
Walkways and paths	1.0 W/linear metre
Building entrances	14.0 W/linear metre of door width
Uncovered parking lots	0.15 W/m² of surface area
Outdoor stairways	1.0 W/linear metre

Do not apply one LPD value to every landscape installation. Classify the illuminated area correctly, calculate the connected load, review controls and operating hours, and obtain confirmation from the appointed consultant. See the Newon Dubai Green Building LED Compliance Guide for full LPD tables and Al Sa’fat requirements.

Landscape Lighting Cost Guide for Dubai

Based on TerraVerde’s Dubai landscaping cost analysis, landscape lighting is a significant but often underestimated line item. For a typical Dubai villa landscape renovation (2,000–10,000 sq ft lot):

• Basic landscape renovation: AED 100,000–150,000 (front + back yard, plants, irrigation)
• Adding 10 low-voltage LED lights: AED 30,000–45,000 additional (fixtures, drivers, cable, installation, commissioning)
• Premium villa with 20+ fixtures, DALI controls, and palm tree ring lights: AED 80,000–150,000+
• Hotel or resort landscape lighting (per phase): AED 200,000–500,000+ depending on fixture count and control complexity

A low product price does not represent the lowest project cost if installation, aiming, access, or replacement becomes difficult. Always request a quotation showing the exact model, quantity, accessories, delivery terms, installation responsibility, and warranty conditions.

Landscape Lighting Coordination Across All UAE Emirates

Federal product requirements and local project approvals are connected but separate. A lighting product may need MoIAT ECAS certification for market entry and additional design coordination for the site.

Emirate	Key Coordination Requirements
Dubai	Dubai Municipality, Al Sa’fat, DEWA, civil defence, building permit, free zone, and master-developer requirements
Abu Dhabi	Abu Dhabi Municipality, Department of Energy, utility, developer, and consultant requirements
Sharjah	Sharjah Municipality, utility, building permit, developer, and installation requirements
Ajman	Local authority, utility, and landscape application requirements
Ras Al Khaimah	RAK Municipality, utility, coastal conditions, and project specifications
Fujairah	Local authority, utility, coastal exposure, and environmental requirements
Umm Al Quwain	Local authority, utility, development, and project documentation

Landscape Lighting Checklist for UAE Projects

• Prepare a site plan showing trees, planting, paths, entrances, façades, seating, water, roads, neighbours, and guest areas.
• Define visual priorities and operating scenes before selecting fixtures.
• Classify each exterior application for the relevant DEWA energy review and LPD calculation.
• Calculate connected load and confirm electrical distribution, driver locations, and control arrangement.
• Review heat, dust, irrigation, water exposure, humidity, corrosion, and maintenance access.
• Check glare, light spill, aiming, shielding, and the effect on residents, guests, drivers, and neighbours.
• Request exact model documentation — do not rely on generic family descriptions.
• Confirm emirate-specific authority, utility, consultant, developer, and site requirements.
• Verify MoIAT ECAS certification for all imported LED products before shipping.

Why Specify Newon.ae for UAE Landscape Lighting?

Newon.ae supplies lighting products engineered for the Gulf climate. Our Dubai office at Dragon Mart-1, Al Aweer Road provides technical specification support for:

• Palm tree ring lights — 400mm and 600mm, 304 stainless steel, IP66-rated
• Mean Well LED drivers — XLG, HLG, ELG series, IP67, DALI-2 and 3-in-1 dimming
• Architectural luminaires for facade, pathway, and accent applications
• Technical datasheets, DEWA compliance guidance, and project submittals

Final suitability, authority compliance, installation design, and approvals must be confirmed for the actual project.

Frequently Asked Questions

What is the best landscape lighting for a Dubai villa?

The best villa landscape lighting uses a layered approach: 2700K–3000K warm white LED bollards for pathways, inground uplights (IP67) for trees and sculptures, and palm tree ring lights (400mm for young palms, 600mm for mature palms) for vertical accents. Always match the fixture to the feature, not the other way around.

What colour temperature is best for outdoor lighting in the UAE?

For Dubai villas and hospitality, 2700K–3000K warm white is the professional standard. It complements sandstone, travertine, and greenery while creating a welcoming atmosphere. Use 4000K neutral white only for security perimeters and commercial facades. Avoid 5000K+ cool white in residential and hospitality settings — it feels clinical and increases light pollution.

Is IP65 always required for outdoor lighting in the UAE?

IP65 is the minimum for general outdoor fixtures in the UAE. For inground installations, pool areas, and fountains, use IP67 or IP68. Coastal properties in JBR, Palm Jumeirah, or Abu Dhabi Corniche require IP67 and marine-grade 316 stainless steel to resist salt corrosion. Always verify the complete installation, not just the fixture rating.

How much does landscape lighting cost in Dubai?

For a typical Dubai villa, adding 10 low-voltage LED fixtures to a landscape project costs approximately AED 30,000–45,000 including fixtures, drivers, cable, and installation. A premium villa with 20+ fixtures, DALI controls, and palm tree ring lights can reach AED 80,000–150,000+. Hotel and resort phases typically start at AED 200,000+.

How many spotlights does a palm tree need?

It depends on tree size and desired effect. A 400mm ring with 4 spotlights suits young Date Palms (trunk diameter 150–280mm) up to 5 metres height. A 600mm ring with 6 spotlights is ideal for mature palms (300–480mm trunk diameter) 6–12 metres tall, delivering near-360° crown coverage. Heritage or commercial palms may need 8+ spotlights on 700mm+ rings.

Does outdoor landscape lighting need a permit in Dubai?

Requirements depend on the property type, project scope, and location. Dubai projects must coordinate with Dubai Municipality (Al Sa’fat green building compliance), DEWA (electrical connection and LPD limits), and the master developer (Emaar, Nakheel, etc.). Always confirm with the appointed consultant and relevant authority before installation.

Can palm tree ring lights be used at hotels and resorts?

Yes, palm tree ring lights are widely used in UAE hospitality for entrance palms, poolside Date Palms, and courtyard features. The 600mm 6-spot ring is the most popular choice for hotels and resorts due to its complete crown coverage and visual impact. Confirm mounting height, power supply, control integration, and maintenance access with the project consultant.

Can the same landscape lighting design be used in every UAE emirate?

A design concept can be adapted, but the approval route, utility coordination, environmental conditions, and local authority requirements differ by emirate. Dubai has Al Sa’fat and DEWA. Abu Dhabi has its own municipality and utility standards. Coastal emirates like Fujairah and RAK require additional corrosion protection. Always check local requirements.

Plan a Better UAE Landscape Lighting Project

The strongest landscape lighting projects are purposeful, comfortable, maintainable, technically documented, and coordinated with the property and its surroundings. Whether you are planning villa garden lighting in Emirates Hills, resort landscape lighting in Abu Dhabi, hotel pathway lighting in Ras Al Khaimah, or a palm-tree feature on the Palm Jumeirah, start with the site, the purpose, the environment, and the current project requirements.

Contact Newon.ae: info@newon.ae | Call/WhatsApp: +92-343-922-7883 | Visit: newon.ae/contact-us

Browse Landscape Lighting Products

References

1. Dubai Municipality: Green Building Certification and Al Sa’fat
2. DEWA: Green Building Regulations and Specifications (Section 502.05)
3. UAE Legislation: Cabinet Resolution No. 25 of 2022 — Regulation of Outdoor Lighting Products
4. DarkSky: Five Principles for Responsible Outdoor Lighting
5. TerraVerde: What Does Landscaping Cost in Dubai?
6. Jaquar UAE: Outdoor Lighting Design in Dubai
7. GoEcoFi: Best Color Temperature for Lighting Projects
8. Tru-Scapes: Landscape Lighting Color Temperature Guide
9. Hondel Lighting: Palm Tree Ring Light Supplier in Dubai
10. Research & Markets: UAE LED Lighting Market Report 2024–2034
11. Newon.ae: Dubai Green Building LED Lighting Compliance Guide
12. Newon.ae: LED Lighting Certification UAE — ECAS & MoIAT Guide
13. Newon.ae: Expert Guide to Selecting LED Power Supplies & Mean Well Drivers

Compliance note: This article provides general planning information and is not legal, engineering, electrical, customs, or authority advice. Requirements, standards, product documentation, and approval procedures may change. Confirm the current requirements with the relevant UAE authority, utility, appointed consultant, project owner, or site operator before specifying, purchasing, importing, or installing lighting products.
