Commercial Palm Avenue Lighting in Dubai: 600mm Ring Light Case Study
When lighting a commercial avenue or roadside boulevard in Dubai, landscape architects and facility managers face a unique set of environmental and aesthetic challenges. Unlike private villa gardens, roadside palms are exposed to heavy vehicular exhaust, continuous dust accumulation, and high-pressure municipal washing.

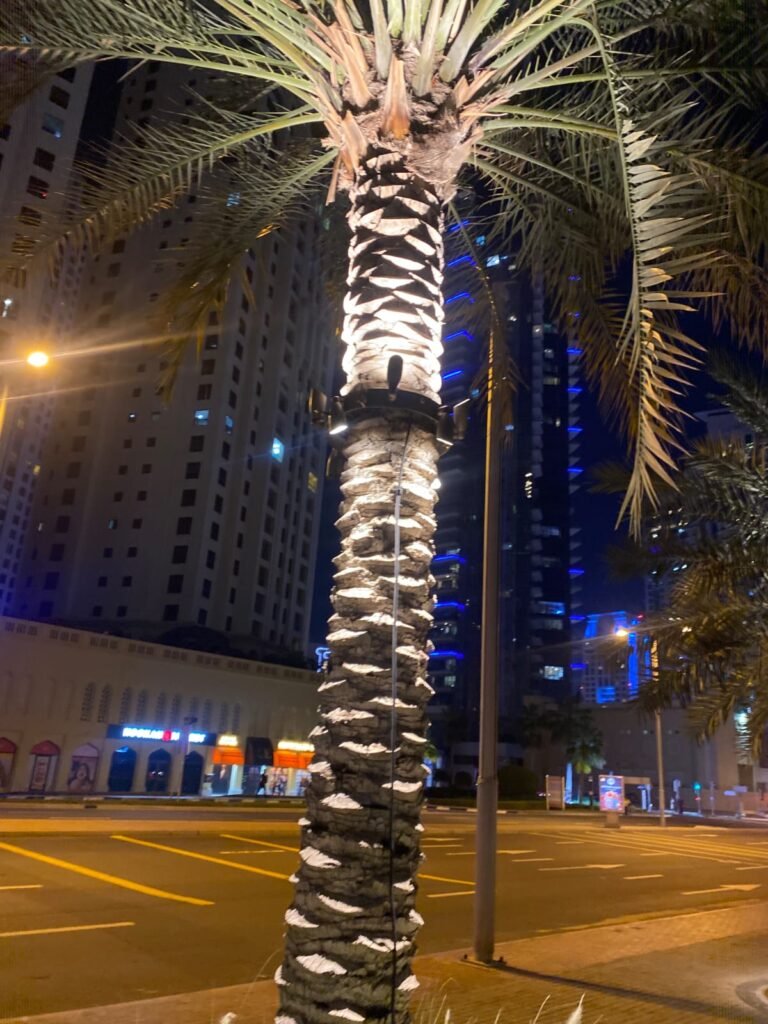

Recently, Newon.ae supplied our 600mm Palm Tree Ring Lights for a premium 20+ tree roadside project situated between a major Dubai residential complex and a retail mall. This case study breaks down the technical specifications required to achieve flawless visual uniformity in harsh, high-traffic commercial environments.
Project Profile: Dubai Mall & Residential Boulevard
- Application: Roadside Boulevard & Commercial Perimeter
- Location: Dubai, UAE
- Quantity: 20+ Mature Palm Trees
- Product Specified: 600mm Palm Tree Ring Light (6 × 12W OSRAM COB LEDs)
- Key Requirements: Absolute visual uniformity, roadside dust/exhaust resistance, adjustable beam angles, and non-invasive tree mounting.
The Challenge: Roadside Uniformity and Durability
Illuminating a continuous avenue of mature Date Palms or Washingtonia requires absolute visual consistency. If one tree looks dimmer than the next, the entire architectural linescape is broken. Furthermore, roadside fixtures must survive conditions that destroy standard landscape lights:
- Particulate Load: Constant exposure to fine desert dust and tire exhaust residue.
- Maintenance Washdowns: Facility management teams frequently use high-pressure hoses to clean roadside hardscapes and planters.
- Vibration: Heavy traffic creates micro-vibrations that can loosen poorly mounted fixtures over time.
The Solution: Why the 600mm IP66 Ring Light was Specified
For this avenue, the contractor specified the Newon 600mm Palm Tree Ring Light, equipped with six 12W OSRAM COB LED spotlights (72W total).
The client specifically praised the results, noting three critical factors that made this fixture the only viable choice for the project:
1. Mechanical Flexibility for Avenue Uniformity
Along a 20-tree avenue, no two palm trunks are perfectly identical. The adjustable COB spotlight brackets allowed the installation team to precisely tilt and aim each individual LED to match the unique taper and canopy density of each tree. This flexibility resulted in a flawless, continuous “starburst” uplighting effect across the entire boulevard, eliminating dark spots and harsh glare.
2. IP66 & 304 Stainless Steel Construction
To survive roadside dust and high-pressure municipal washing, the fixtures are machined from marine-grade 304 stainless steel and carry an IP66 ingress protection rating. This ensures total protection against powerful water jets and fine particulate matter, preventing the internal LED drivers from short-circuiting during routine avenue cleaning.
3. Safe, Non-Invasive Mounting
UAE municipal and agricultural guidelines strictly prohibit drilling or nailing into the trunks of public and commercial palm trees, as this creates pathways for fatal fungal infections. Newon’s adjustable ring and jaw-bracket system secures the fixture firmly to the trunk without penetrating the bark, ensuring the health of the trees while withstanding roadside wind and vibration.
Technical Specifications for Municipal & Commercial Contractors
If you are specifying lighting for highways, community boulevards, or mall perimeters in the GCC, ensure your fixture schedule includes:
- Housing Material: 304 Stainless Steel (Standard aluminum or 201 SS will oxidize and fail in roadside/coastal zones).
- IP Rating: IP66 minimum (IP65 fixtures will fail under municipal pressure washing).
- LED Source: High-CRI COB LEDs for smooth trunk washing without harsh pixelation or glare for passing drivers.
- Color Temperature: 3000K Warm White (Mandated by Dubai Municipality and most master developers to reduce light pollution and sky-glow).
- Power Supplies: Commercial avenues require reliable, surge-protected LED drivers to prevent flicker. We recommend pairing these fixtures with IP67-rated Mean Well LED Drivers to ensure a 50,000+ hour maintenance-free lifespan.
Frequently Asked Questions: Commercial Palm Avenue Lighting
How do you ensure uniform lighting across a long palm tree avenue? Uniformity is achieved by using fixtures with individually adjustable spotlights, like the Newon 600mm ring light. Because every mature palm tree has a unique trunk shape and canopy density, installers must be able to tilt each COB LED independently to create a continuous, unbroken visual line down the avenue.
What IP rating is required for roadside palm tree lighting in Dubai? Roadside fixtures must carry a minimum IP66 rating. They are constantly exposed to fine dust, vehicular exhaust, and high-pressure water jets used by facility management teams to clean hardscapes and planters. Standard IP65 garden lights will suffer water ingress and fail within months in these conditions.
Are Newon 600mm ring lights suitable for mall and commercial landscapes? Yes. The 600mm model (72W total output) is specifically engineered for mature palms commonly found in commercial boulevards, hotel driveways, and mall perimeters. The 304 stainless steel construction ensures the fixtures maintain their aesthetic finish despite exposure to urban pollution and coastal humidity.
Ready to Illuminate Your Commercial Avenue?
Whether you’re a contractor, facility manager, or landscape architect planning a roadside boulevard, mall perimeter, or residential community project in the UAE, Newon.ae delivers end-to-end lighting solutions. From technical datasheets to bulk project quotations, our Dubai team is ready to support your next specification.
Get in touch today:
- 📧 Email: info@newon.ae
- 📞 WhatsApp / Call: +92 343 9227883
- 🔗 LinkedIn: Message us on LinkedIn
Let’s bring your avenue lighting vision to life with precision, durability, and uniformity.
